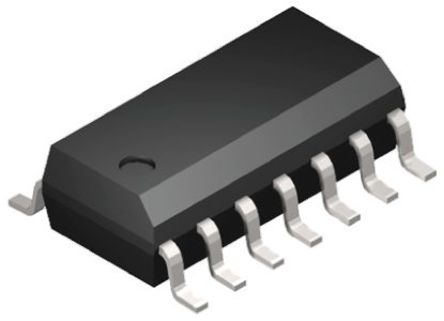

Image is for your reference only,please check specifications for details

74HC393D - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC82523103
Category:
Counter, Counter IC
Package:
SOIC
Datasheet:
Datasheet 3D Model
Description:
IC HC/UH SERIES, ASYN NEGATIVE EDGE TRIGGERED 4Bit UP BINARY COUNTER, PDSO14, 3.9MM, PLASTIC, MS-012, SOT-108-1, SOP-14, Counter
Stock Locations:
Availability:
3,142 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.4

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 74HC393D is a 4-stage dual Binary Ripple Counter features a clock input (nCP\\), an overriding asynchronous master reset input (nMR) and 4 buffered parallel outputs (nQ0 to nQ3). The counter advances on the high-to-low transition of nCP\\. A high on nMR clears the counter stages and forces the outputs low, independent of the state of nCP\\. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Two 4-bit Binary counters with individual clock
Two Master resets to clear each 4-bit counter individually
CMOS Input levels
Complies with JEDEC standard No. 7A

Show

74HC393D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC
Supply Voltage (DC)	5.00 V, 6.00 V (max)
Number of Positions	14 Position
Clock Speed	107 MHz
Number of Bits	4 Bit
Number of Gates	2 Gate
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.45 mm
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HK STC License	NLR
