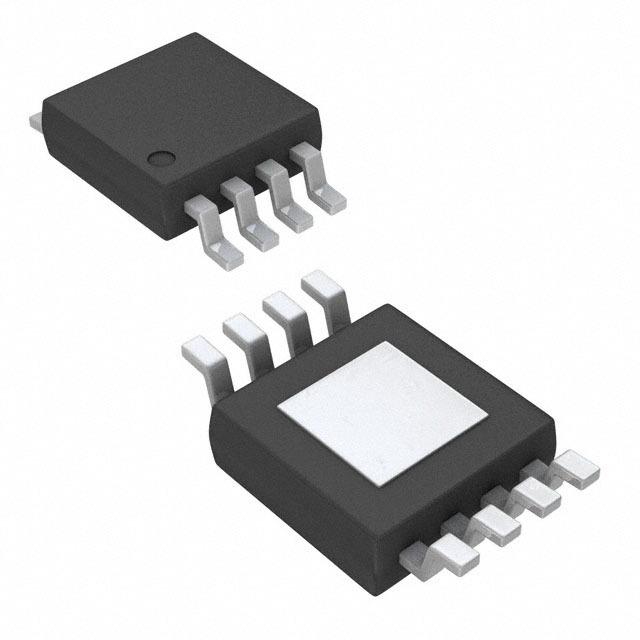

Image is for your reference only,please check specifications for details

THS3001HVIDGN - TI
Manufacturer:
TI
ManyChip's Part#:
MC12192996
Category:
Operational Amplifier, OP Amp IC
Package:
PowerPad-MSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS THS3001HVIDGN Operational Amplifier, Single, 1 Amplifier, 420MHz, 6500V/µs, ± 4.5V to ± 16V, MSOP, 8Pins
Stock Locations:
Availability:
220 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.66

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The THS3001 is a high-speed current-feedback operational amplifier, ideal for communication, imaging, and high-quality video applications. This device offers a very fast 6500-V/µs slew rate, a 420-MHz bandwidth, and 40-ns settling time for large-signal applications requiring excellent transient response. In addition, the THS3001 operates with a very low distortion of –96 dBc, making it well suited for applications such as wireless communication basestations or ultrafast ADC or DAC buffers.

Show

THS3001HVIDGN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerPad-MSOP-8
Supply Current	6.9 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	1.71 W
Common Mode Rejection Ratio	62 dB
Input Offset Drift	5.00 µV/K
Bandwidth	330 MHz
Slew Rate	6.50 kV/μs
Gain Bandwidth Product	1750 MHz
Input Offset Voltage	1 mV
Input Bias Current	2 µA
Available Channels	S
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	420 MHz
Gain Bandwidth	1750 MHz
Power Dissipation (Max)	1710 mW
Minimum CMRR Range	62 dB
Supply Voltage	4.5V ~ 16V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
