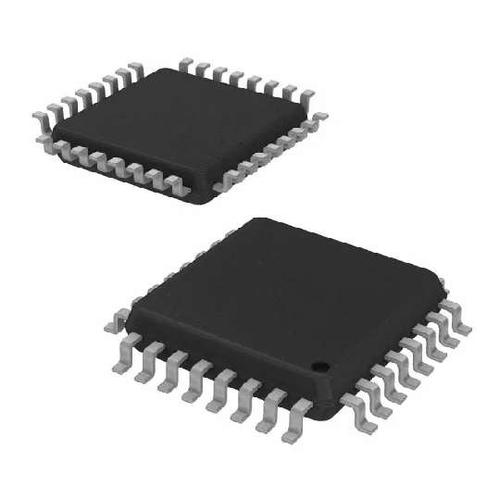

Image is for your reference only,please check specifications for details
- TUSB2046BVFR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC1181840
-
Category:Interface IC, Interface Controller
-
Package:LQFP-32
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS TUSB2046BVFR USB Interface, Hub, 3V, 3.6V, LQFP, 32Pins
-
Stock Locations:
-
Availability:58 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.87
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The TUSB2046B is a 3.3-V CMOS hub device that provides one upstream port and four downstream ports in compliance with the Universal Serial Bus (USB) specification as a full-speed hub. Because this device is implemented with a digital state machine instead of a microcontroller, no firmware
- Features
- • Fully Compliant With the USB Specification as a Full-Speed Hub: TID #30220231
- • 32-Pin LQFP(1) Package With a 0.8-mm Terminal Pitch or QFN Package With a 0.5-mm Pin Pitch
- • 3.3-V Low-Power ASIC Logic
- • Integrated USB Transceivers
- • State Machine Implementation Requires No Firmware Programming
- • One Upstream Port and Four Downstream Ports
- • All Downstream Ports Support Full-Speed and Low-Speed Operations
- • Two Power Source Modes
- – Self-Powered Mode
- – Bus-Powered Mode
- • Power Switching and Overcurrent Reporting Is Provided Ganged or Per Port
- • Supports Suspend and Resume Operations
- • Supports Programmable Vendor ID and Product ID With External Serial EEPROM
- • 3-State EEPROM Interface Allows EEPROM Sharing
- • Push-Pull Outputs for PWRON Eliminate the Need for External Pullup Resistors
- • Noise Filtering on OVRCUR Provides Immunity to Voltage Spikes
- • Package Pinout Allows 2-Layer PCB
- • Low EMI Emission Achieved by a 6-MHz Crystal Input
- • Migrated From Proven TUSB2040 Hub
- • Lower Cost Than the TUSB2040 Hub
- • Enhanced System ESD Performance
- • No Special Driver Requirements; Works Seamlessly With Any Operating System With USB Stack Support
- • Supports 6-MHz Operation Through a Crystal Input or a 48-MHz Input Clock
- Applications
- • Computer Systems
- • Docking Stations
TUSB2046BVFR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | LQFP-32 |
| Supply Voltage (DC) | 3.00V (min) |
| Supply Current | 40 mA |
| Number of Positions | 32 Position |
| Data Rate | 12.0 Mbps |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Supply Voltage | 3V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Height | 1.45 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
