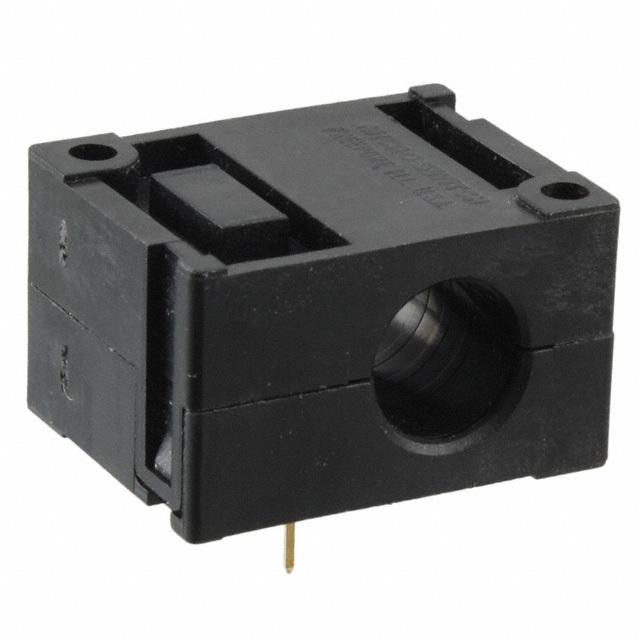

Image is for your reference only,please check specifications for details

CSDA1AA - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC6469933
Category:
Current Sensor
Package:
Module, Single Pass Through
Datasheet:
Datasheet 3D Model
Description:
HONEYWELL CSDA1AA Current Sensor, CS Series, Solid State, 250mA to 1A, Digital Output, 6VDC to 16VDC
Stock Locations:
Availability:
314 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 32.81

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This CSDA1AA current sensor from Honeywell is used to measure the flow of current in an electric circuit. This device"s minimum operating supply voltage of 6 V, while its maximum is 16 V. This part has a temperature range of -25 °C to 85 °C.

Show

CSDA1AA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	Module, Single Pass Through
Supply Voltage (DC)	6V ~ 16V
Current Rating	250mA ~ 1A
Output Voltage	0.40 V
Output Current	20 mA
Supply Current	2.5 mA
Number of Channels	1 Channel
Contact Current Rating	12.0 mA
Output Voltage (Max)	0.4 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Accuracy	±0.5 %
Supply Voltage	6V ~ 16V
	Show
Operating Temperature	-25℃ ~ 85℃
Housing Material	Polyester
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	9030330040
ECCN Code	EAR99
