Description

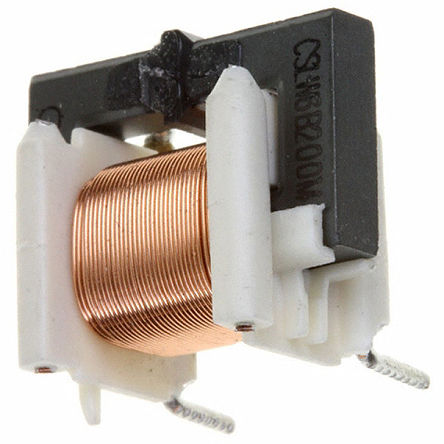

The CSLW6B200M is an in-circuit analogue Current Sensor incorporates SS490 series miniature ratiometric linear hall-effect sensor. The sensing element is encapsulated in a printed circuit board-mountable plastic package. The combination of sensor, flux collector and wire coil comprises the current sensor assembly. This sensor is ratiometric.
Wired open-loop design with multiple turns for increased sensitivity
AC or DC current sensing
Through-hole design
Linear ratiometric output
Current sinking or sourcing output for interfacing flexibility
Low insertion loss
Fast response time
Compact size for applications with limited space
Accurate and low-cost sensing
Minimum energy dissipation
Maximum current limited only by conductor size
Built-in temperature compensation promotes reliable operation
-25 to 100°C operating temperature range
PCB on 5-pin mounting
Do not use this product as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.
