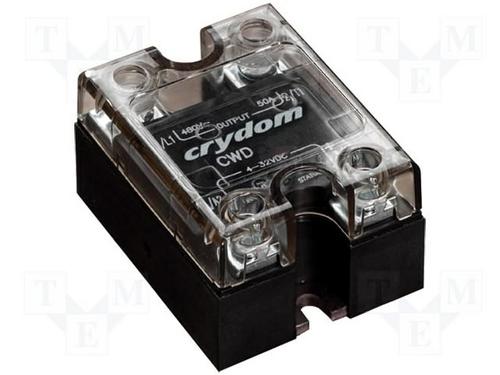

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

CWD4890 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel, Screw
Number of Pins	4 Pin
Case/Package	Hockey Puck
Current Rating	90 A
Insulation Resistance	1.00 GΩ
Output Voltage	48V ~ 660V
Output Current	90000 mA
Contacts Type	SPST-NO
Load Current	90 A
Input Current	15 mA
Isolation Voltage	4000 v
Output Voltage (Max)	660 V
Voltage Rating	48VAC ~ 660VAC
Operating Voltage (Min)	48 Vrms
Operating Voltage (Max)	660 Vrms
Input Voltage	32 V
	Show
Size-Length	58.4 mm
Size-Width	45.7 mm
Size-Height	33.0 mm
Contact Material	Silver
Operating Temperature	-40℃ ~ 80℃
Product Lifecycle Status	Not Recommended for New Design
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536490080
ECCN Code	EAR99
