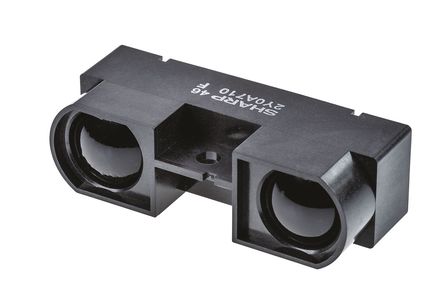

Image is for your reference only,please check specifications for details
- GP2Y0A710K0F - Sharp
-
Manufacturer:Sharp
-
ManyChip's Part#:MC5531988
-
Category:IrDA, Infrared Data Access
-
Package:100
-
Datasheet:Datasheet 3D Model
-
Description:Diffuse Photoelectric Sensor, 1000mm Min, 5500mm Max, 2.30-2.7V, Rectangular, 58 X 17.6MM, 22.5MM HEIGHT, ROHS COMPLIANT PACKAGE
-
Stock Locations:
-
Availability:273 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 9.09
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The GP2Y0A710K0F from Sharp is a distance measuring sensor unit. This unit is composed of an integrated combination of PSD (position sensitive detector), IRED (infrared emitting diode) and signal processing circuit. The variety of the reflectivity of the object, environmental temperature and the operating duration are not influenced easily to the distance detection because of adopting the triangulation method. This device outputs the voltage corresponding to the distance detection. So this sensor can also be used as a proximity sensor. Typical applications include projector (for auto focus), robot cleaner, auto-switch for illumination, human body detector and amusement equipment.
- Long distance measuring range from 100cm to 550cm
- Analogue output type
- 58mm x 17.6mm x 22.5mm package size
- Current consumption is typically 30mA
- Supply voltage range from 4.5V to 5.5V
- Output terminal voltage is 2.5V
- In order to stabilize power supply line, recommended to insert a bypass capacitor of 10µF or more between VCC and GND. Use the power supply which can output 350mA or more to operate properly.
GP2Y0A710K0F Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 5 Pin |
| Case/Package | 100 |
| Supply Voltage (DC) | 4.5V ~ 5.5V |
| Supply Current | 50 mA |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -10 ℃ |
| Supply Voltage | 4.5V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Size-Width | 17.6 mm |
| Operating Temperature | -10℃ ~ 60℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
