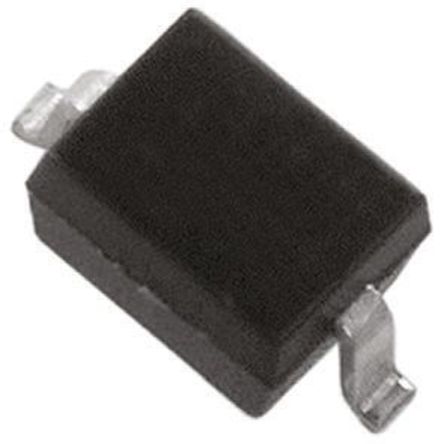

Image is for your reference only,please check specifications for details

SD05T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC726281
Category:
TVS Diode
Package:
SOD-323
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR SD05T1G TVS Diode, SD05T1 Series, Unidirectional, 5V, 14.5V, SOD-323, 2Pins
Stock Locations:
Availability:
3,235 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.11

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SD05T1 series Transient Voltage Suppressor Diode designed for applications requiring transient overvoltage protection capability. It is intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. This device is ideal for situations where board space is at a premium.
300mW Steady state power routing
350W (8 x 20µs) Peak power
Low leakage
Cathode indicated by polarity band
Meets IEC61000-4-2 level 4, 15kV (air), 8kV (contact)
Meets IEC6100-4-4 level 4, 40A
Meets IEC6100-4-5 (lightning), 24A
Meets 16kV human body model ESD requirements
-55 to 150°C Junction temperature range

Show

SD05T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323
Voltage Rating (DC)	5.00 V
Operating Voltage	5.00 V
Capacitance	350 pF
Power Rating	350 W
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	350 W
Clamping Voltage	14.5 V
Test Current	1 mA
Max Breakdown Voltage	7.3 V
Peak Pulse Power	350 W
Min Breakdown Voltage	6.2 V
Reverse Breakdown Voltage	6.2 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 150℃
Power Dissipation (Max)	300 mW
	Show
Size-Length	1.8 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
