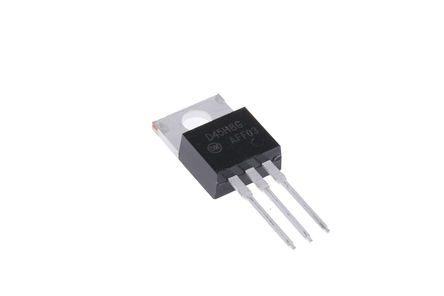

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The D45H8G is a 10A PNP bipolar Power Transistor offers low collector-emitter saturation voltage. It can be used as general purpose power amplification and switching such as output or driver stages in applications such as switching regulators, converters and power amplifiers.
Fast switching speeds
Complementary pairs simplifies designs

Show

D45H8G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	-60.0 V
Current Rating	-10.0 A
Polarity	PNP, P-Channel
Power Dissipation	2000mW
Breakdown Voltage (Collector to Emitter)	60V
Continuous Collector Current	10A
	Show
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
