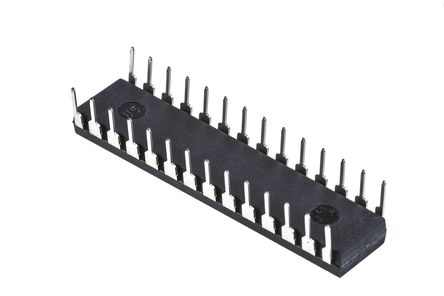

- DAC715P - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC91607809
-
Category:Digital to Analog, DAC IC
-
Package:DIP-28
-
Datasheet:Datasheet 3D Model
-
Description:Цифро-аналоговый преобразователь 16-бит, с 16-битным интерфейсом шины, ЦАП, 1 канал, R-2R, 16 бит, 28-выводной PDIP, трубка
-
Stock Locations:
-
Availability:421 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 52.51
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Микросхема DAC715P представляет собой полный 16-разрядный монолитный цифро-аналоговый преобразователь, включающий стабилизированный источник опорного напряжения 10 В с температурной компенсацией, преобразователь ток-напряжение, параллельный интерфейс с двойной буферизацией и асинхронную функцию сброса, которая немедленно устанавливает выходное напряжение на половину полной шкалы. Диапазон выходного напряжения составляет от 0 до 10 В при питании от источников ±12/±15 В. Регулировка усиления и смещения для биполярного режима выполнена таким образом, чтобы их можно было задавать с помощью внешних потенциометров или внешнего ЦАП. Выходной усилитель защищен от короткого замыкания на землю.
- Высокоскоростной 16-разрядный параллельный интерфейс с двойной буферизацией
- 16-разрядный монолитный, стабильный в диапазоне температур
- Рассеиваемая мощность — не более 600 мВт
- Регулировка усиления и смещения — удобно для автоматической калибровки ЦАП
- Экологичный продукт, не содержит сурьмы и брома
DAC715P Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 28 Pin |
| Case/Package | DIP-28 |
| Supply Current | 22 mA |
| Number of Positions | 28 Position |
| Number of Bits | 16 Bit |
| Sample Rate | 100 ksps |
| Power Consumption | 10.0 mW |
| Thermal Shutdown | No |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of DACs | 1 DAC |
| Supply Voltage (Max) | 16.5 V |
| Supply Voltage (Min) | 11.4 V |
| Show | |
| Size-Length | 35.69 mm |
| Size-Width | 6.73 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
