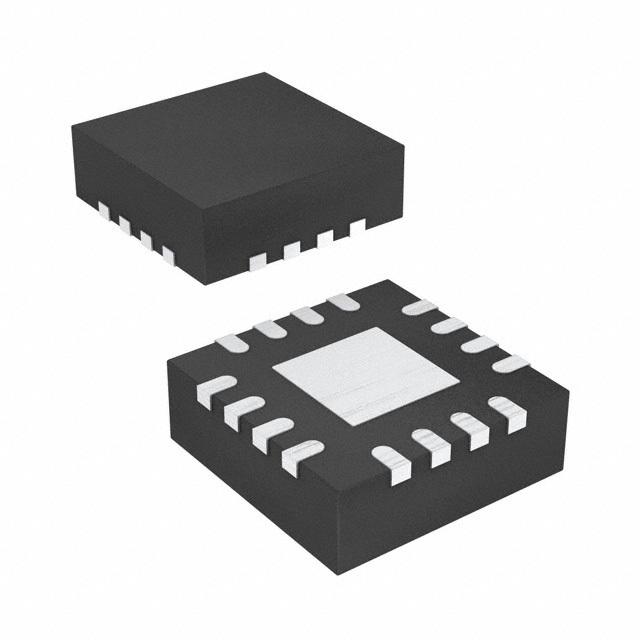

DAC7552IRGTR - TI
Manufacturer:
TI
ManyChip's Part#:
MC47666667
Category:
Digital to Analog, DAC IC
Package:
QFN-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DAC7552IRGTR Digital to Analog Converter, 12Bit, 1MSPS, Serial, 2.7V to 5.5V, QFN, 16Pins
Stock Locations:
Availability:
301 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.22

Updated at 22/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The DAC7552 is a 12-bit, dual-channel, voltage-output DAC with exceptional linearity and monotonicity. Its proprietary architecture minimizes undesired transients such as code-to-code glitch and channel-to-channel crosstalk. The low-power DAC7552 operates from a single 2.7-V to 5.5-V supply. The DAC7552 output amplifiers can drive a 2-kΩ, 200-pF load rail-to-rail with 5-µs settling time; the output range is set using an external voltage reference.
FEATURES
• 2.7-V to 5.5-V Single Supply
• 12-Bit Linearity and Monotonicity
• Rail-to-Rail Voltage Output
• Settling Time: 5 µs (Max)
• Ultralow Glitch Energy: 0.1 nVs
• Ultralow Crosstalk: –100 dB
• Low Power: 440 µA (Max)
• Per-Channel Power Down: 2 µA (Max)
• Power-On Reset to Zero Scale
• SPI-Compatible Serial Interface: Up to 50 MHz
• Daisy-Chain Capability
• Asynchronous Hardware Clear
• Simultaneous or Sequential Update
• Specified Temperature Range: –40°C to 105°C
• Small 3-mm × 3-mm, 16-Lead QFN Package

Show

DAC7552IRGTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QFN-16
Supply Current	300 µA
Number of Bits	12 Bit
Sample Rate	1 Msps
Power Consumption	675 µW
Thermal Shutdown	No
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Number of DACs	2 DAC
Supply Voltage	2.7V ~ 5.5V
	Show
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
