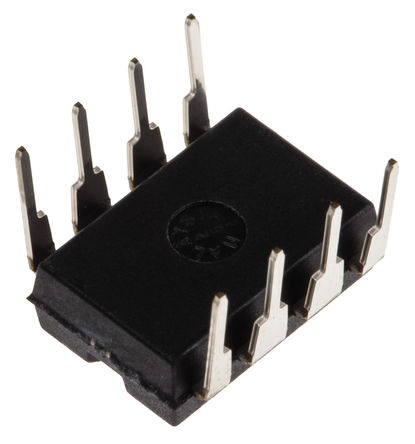

DAC7611P - TI
Manufacturer:
TI
ManyChip's Part#:
MC6832404
Category:
Digital to Analog, DAC IC
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
Digital to Analog Converter, 12Bit, 132KSPS, Serial, 4.75V to 5.25V, DIP, 8Pins
Stock Locations:
Availability:
972 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.68

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DAC7611P is a 12-bit Digital-to-analog Converter (DAC) with guaranteed monotonicity performance over the industrial temperature range. It requires a single 5V supply and contains an input shift register, latch, 2.435V reference, DAC and high speed rail-to-rail output amplifier. For a full-scale step, the output will settle to 1LSB within 7µs. The synchronous serial interface is compatible with a wide variety of DSPs and microcontrollers. Clock (CLK), serial data in (SDI) and load strobe (LD) comprise the serial interface. In addition, two control pins provide a chip select (CS) function and an asynchronous clear (CLR) input. The CLR input can be used to ensure that the DAC7611 output is 0V on power-up or as required by the application.
Fast setting - 7µs to 1LSB
1mV LSB with 4.095V full-scale range
Complete with reference
Asynchronous reset to 0V
Green product and no Sb/Br

Show

DAC7611P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	5.00 V, 5.00 V (max)
Operating Voltage	5 V
Number of Outputs	1 Output
Supply Current	500 µA
Number of Channels	1 Channel
Number of Positions	8 Position
Number of Bits	12 Bit
Power Dissipation	0.005 W
Sample Rate	132 ksps
Power Consumption	5.00 mW
Thermal Shutdown	No
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	5 mW
Number of DACs	1 DAC
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
