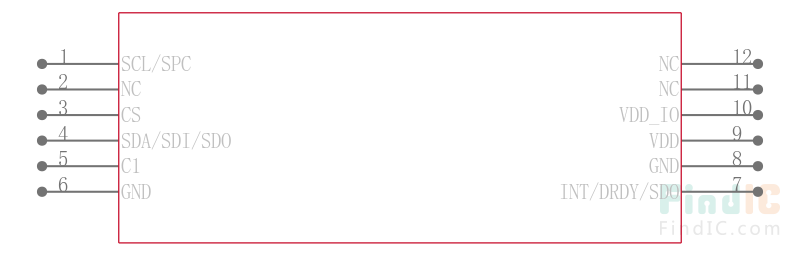

Image is for your reference only,please check specifications for details

LIS2MDLTR - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC15390400
Package:
LGA-12
Datasheet:
Datasheet 3D Model
Description:
Digital output magnetic sensor: ultra-low power high performance 3-axis magnetometer
Stock Locations:
Availability:
111 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.31

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LIS2MDL is an ultra-low-power, high-performance 3-axis digital magnetic sensor.
The LIS2MDL has a magnetic field dynamic range of ±50 gauss.
The LIS2MDL includes an I2C serial bus interface that supports standard, fast mode, fast mode plus, and high-speed (100 kHz, 400 kHz, 1 MHz, and 3.4 MHz) and an SPI serial standard interface.
The device can be configured to generate an interrupt signal for magnetic field detection.
The LIS2MDL is available in a plastic land grid array package (LGA) and is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.
**Key Features**
3 magnetic field channels
±50 gauss magnetic dynamic range
16-bit data output
SPI/I2 C serial interfaces
Analog supply voltage 1.71 V to 3.6 V
Selectable power mode/resolution
Single measurement mode
Programmable interrupt generator
Embedded self-test
Embedded temperature sensor
ECOPACK® , RoHS and “Green” compliant
