Description

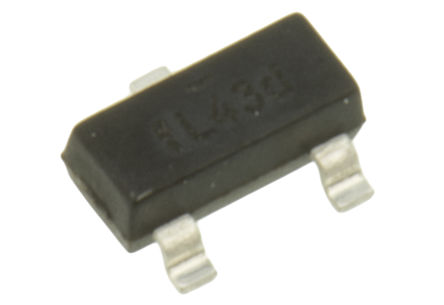

The BAT54C is a Schottky Barrier Diode for general use and also suitable for many different applications.
290mW Power dissipation
430°C/W Junction-to-ambient thermal resistance
10pF at 1V/1MHz Total capacitance

Show

BAT54C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	30.0 V
Current Rating	200 A
Capacitance	10.0 pF
Number of Positions	3 Position
Forward Voltage	800mV @100mA
Reverse recovery time	5 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	600 mA
Maximum Forward Voltage (Max)	400 mV
Forward Current (Max)	200 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	2.92 mm
Size-Width	1.3 mm
Size-Height	0.93 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
