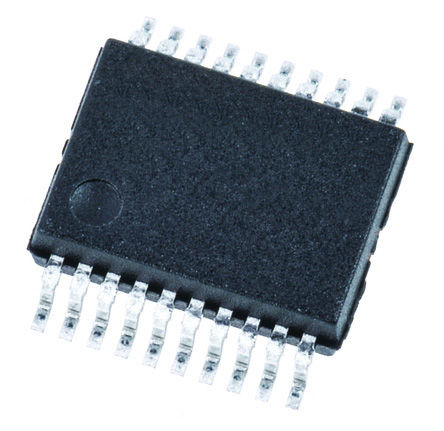

Image is for your reference only,please check specifications for details

DAC7621E - TI
Manufacturer:
TI
ManyChip's Part#:
MC17425329
Category:
Digital to Analog, DAC IC
Package:
SSOP-20
Datasheet:
Datasheet 3D Model
Description:
BURR-BROWN DAC7621E.. Digital to Analogue Converter, 12Bit, 143KSPS, Parallel, 4.75V to 5.25V, SSOP, 20Pins
Stock Locations:
Availability:
255 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.99

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DAC7621E is a 12-bit Digital-to-analog Converter (DAC) with guaranteed monotonicity performance over the industrial temperature range. It requires a single 5V supply and contains an input register, latch, 2.435V reference, DAC and high speed rail-to-rail output amplifier. For a full-scale step, the output will settle to 1LSB within 7µs. The parallel interface is compatible with a wide variety of microcontrollers. The DAC7621 accepts a 12-bit parallel word, has a double-buffered input logic structure and provides data read-back. In addition, two control pins provide a chip select (CS) function and asynchronous clear (CLR) input. The CLR input can be used to ensure that the DAC7621 output is 0V on power-up or as required by the application.
Low power - 2.5mW
Complete with reference
Asynchronous reset to 0V
Green product and no Sb/Br

Show

DAC7621E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SSOP-20
Supply Voltage (DC)	5.00V (max)
Number of Outputs	1 Output
Supply Current	500 µA
Number of Channels	1 Channel
Number of Positions	20 Position
Number of Bits	12 Bit
Power Dissipation	0.005 W
Sample Rate	143 µHz
Power Consumption	2.50 mW
Thermal Shutdown	No
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	5 mW
Number of DACs	1 DAC
Supply Voltage	4.75V ~ 5.25V
	Show
Size-Length	7.2 mm
Size-Width	5.3 mm
Size-Height	1.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
