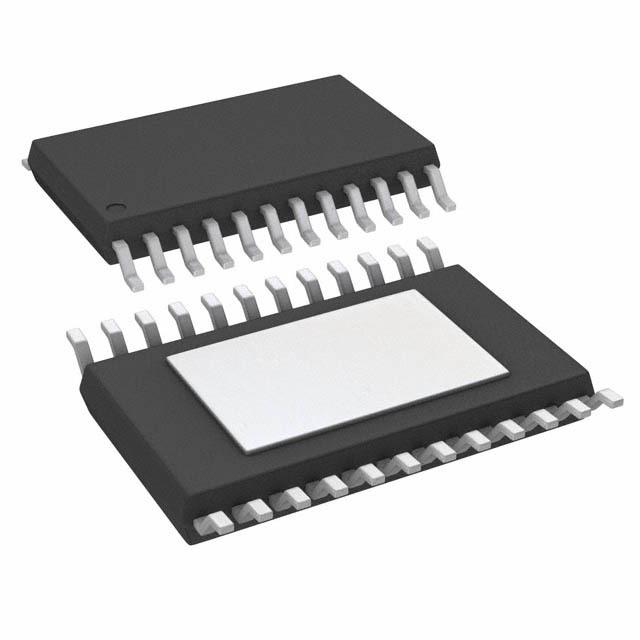

Image is for your reference only,please check specifications for details
- DAC7760IPWP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC47419521
-
Category:Digital to Analog, DAC IC
-
Package:HTSSOP-24
-
Datasheet:Datasheet 3D Model
-
Description:12Bit, single-channel, programmable current/voltage output DAC for 4-20mA current loop applications 24-HTSSOP -40℃ to 125℃
-
Stock Locations:
-
Availability:149 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 82.98
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Want to be able to convert digital audio signals into analog ones? This DAC7760IPWP from Texas Instruments is perfect and can handle high quality signals with ease. This device is based on Resistor-String architecture. This device"s digital interface is serial (4-wire, spi, qspi, microwire). It has a current|voltage output. This DAC has a resolution of 12bit. It has a maximum of ±18 V. This DAC has a temperature range of -40 °C to 125 °C. This device comes in tube packaging. This device uses one or two power supplies.
DAC7760IPWP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | HTSSOP-24 |
| Number of Outputs | 2 Output |
| Number of Channels | 1 Channel |
| Number of Bits | 12 Bit |
| Power Dissipation | 0.17 W |
| Sample Rate | 40.0 µHz |
| Power Consumption | 135 mW |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 170 mW |
| Number of DACs | 1 DAC |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
