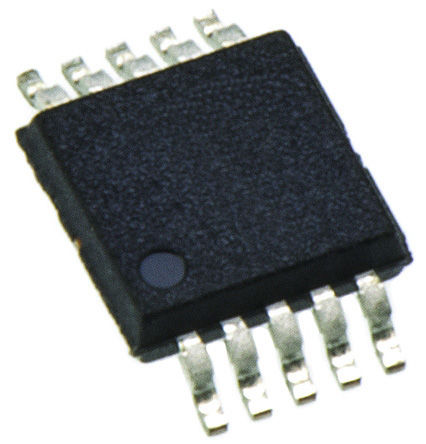

- DAC7811IDGS - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC8381661
-
Category:Digital to Analog, DAC IC
-
Package:VSSOP-10
-
Datasheet:Datasheet 3D Model
-
Description:12Bit, single-channel, serial input multiplying DAC with 0.2us settling time 10-VSSOP -40℃ to 125℃
-
Stock Locations:
-
Availability:88 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 113.16
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DAC7811 is a CMOS, 12-bit, current output digital-to-analog converter (DAC). This device operates from a 2.7-V to 5.5-V power supply, making it suitable for battery-powered and many other applications.
- This DAC uses a double-buffered 3-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE, and most DSP interface standards. In addition, a serial data out pin (SDO) allows for daisy-chaining when multiple devices are used. Data readback allows the user to read the contents of the DAC register via the SDO pin. On power-up, the internal shift register and latches are filled with zeroes and the DAC outputs are at zero scale.
- The DAC7811 offers excellent 4-quadrant multiplication characteristics, with large signal multiplying bandwidth of 10 MHz. The applied external reference input voltage (VREF) determines the full-scale output current. An integrated feedback resistor (RFB) provides temperature tracking and full-scale voltage output when combined with an external current-to-voltage precision amplifier.
- The DAC7811 is available in a 10-lead VSSOP package.
DAC7811IDGS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | VSSOP-10 |
| Number of Outputs | 1 Output |
| Number of Channels | 1 Channel |
| Number of Bits | 12 Bit |
| Power Dissipation | 25.0 µW |
| Sample Rate | 5.00 mHz |
| Power Consumption | 25.0 µW |
| Thermal Shutdown | No |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of DACs | 1 DAC |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 1.02 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
