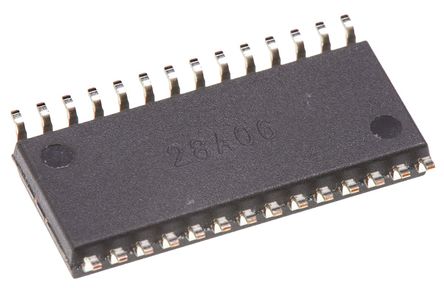

DAC813JU - TI
Manufacturer:
TI
ManyChip's Part#:
MC18693633
Category:
Digital to Analog, DAC IC
Package:
SOIC-28
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DAC813JU Digital to Analog Converter, 12Bit, 167KSPS, Parallel, ± 11.4V to ± 16.5V, SOIC, 28Pins
Stock Locations:
Availability:
215 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 15.48

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The DAC813 is a complete monolithic 12-bit digital to-analog converter with a flexible digital interface. It includes a precision +10V reference, interface control logic, double-buffered latch and a 12-bit D/A converter with voltage output operational amplifier. Fast current switches and laser-trimmed thin-film resistors provide a highly accurate, fast D/A converter.
FEATURES
●±1/2LSB NONLINEARITY OVER TEMPERATURE
●GUARANTEED MONOTONIC OVER TEMPERATURE
●LOW POWER: 270mW typ
●DIGITAL INTERFACE DOUBLE BUFFERED: 12 AND 8 + 4 BITS
●SPECIFIED AT ±12V AND ±15V POWER SUPPLIES
●RESET FUNCTION TO BIPOLAR ZERO
●0.3" WIDE DIP AND SO PACKAGES

Show

DAC813JU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SOIC-28
Operating Voltage	11.4V ~ 16.5V
Number of Outputs	1 Output
Supply Current	13.0 mA
Number of Channels	1 Channel
Number of Positions	28 Position
Number of Bits	12 Bit
Power Dissipation	0.33 W
Sample Rate	167 ksps
Power Consumption	270 mW
Thermal Shutdown	No
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	330 mW
Number of DACs	1 DAC
	Show
Size-Length	18 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
