Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 3 Pin |

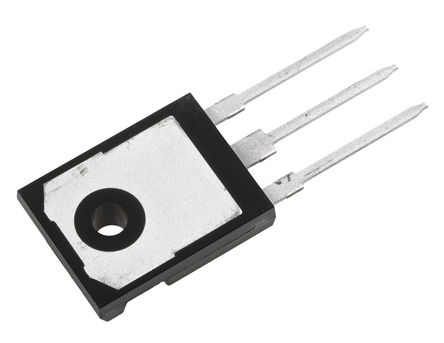

Case/Package | TO-247-3 |
Voltage Rating (DC) | 500 V |
Current Rating | 44.0 A |
Number of Channels | 1 Channel |
Number of Positions | 3 Position |
Drain to Source Resistance (on) (Rds) | 0.14 Ω |
Polarity | N-Channel |
Power Dissipation | 650 W |
Threshold Voltage | 5 V |
Input Capacitance | 5.44 nF |
Gate Charge | 98.0 nC |
Drain to Source Voltage (Vds) | 500 V |
Breakdown Voltage (Drain to Source) | 500 V |
Continuous Drain Current (Ids) | 44.0 A |
Rise Time | 29 ns |
Reverse recovery time | 200 ns |
Input Capacitance (Ciss) | 5440pF @25V(Vds) |
Input Power (Max) | 650 W |
Fall Time | 27 ns |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 658W (Tc) |
Show | |
Size-Length | 16.26 mm |
Size-Width | 5.3 mm |
Size-Height | 21.46 mm |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
