DAC8581IPW - TI
Manufacturer:
TI
ManyChip's Part#:
MC39249406
Category:
Digital to Analog, DAC IC
Package:
TSSOP-16
Datasheet:
Datasheet 3D Model
Description:

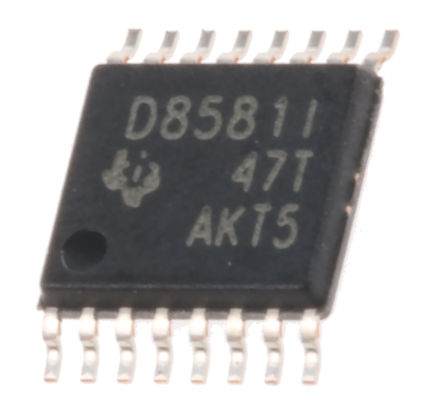

TEXAS INSTRUMENTS DAC8581IPW Digital to Analog Converter, 16Bit, 3MSPS, Serial, ± 4V to ± 6V, TSSOP, 16Pins
Stock Locations:
Availability:
4,875 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.98

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DAC8581IPW is a 16-bit high-speed low-noise Digital-to-analog Converter (DAC) operating from dual ±5V power supplies. The DAC8581 is monotonic and has exceptionally low noise and exceptionally low glitch. The DAC8581 high-performance, bipolar output buffer is capable of settling within 0.65µs for a 10V step. Small-signal settling time is well under 0.3µs, supporting data update rates up to 3MSPS. A power-on-reset circuit sets the output at midscale voltage on power up. The DAC8581 is simple to use with a single external reference and a standard 3-wire SPI interface that allows clock rates up to 50MHz.
Very low glitch - 0.5nV-s
Fast settling - 0.65µs
Fast slew rate - 35V/µs
Single external reference
Power-on reset to mid-scale
Twos complement data format
Hardware reset to mid-scale
Green product and no Sb/Br

Show

DAC8581IPW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Number of Outputs	1 Output
Supply Current	-23.0 mA
Number of Channels	1 Channel
Number of Positions	16 Position
Number of Bits	16 Bit
Power Dissipation	175 mW
Sample Rate	3 Msps
Power Consumption	175 mW
Thermal Shutdown	No
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of DACs	1 DAC
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
