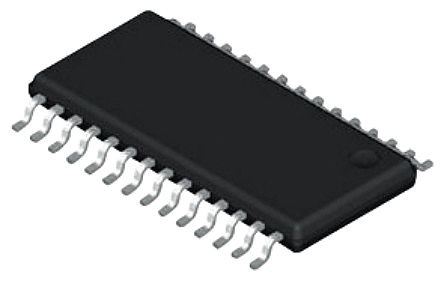

Image is for your reference only,please check specifications for details
- DAC902E - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC6285729
-
Category:Digital to Analog, DAC IC
-
Package:TSSOP-28
-
Datasheet:Datasheet 3D Model
-
Description:Digital to Analogue Converter, 12Bit, 165MSPS, Parallel, 2.7V to 5.5V, TSSOP, 28Pins
-
Stock Locations:
-
Availability:2,019 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 8.99
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DAC902E is a high-speed 12-bit Digital-to-analog Converter (DAC) offering a resolution option within the SpeedPlus Family of high-performance converters. The advanced segmentation architecture of the DAC902 is optimized to provide a high spurious-free dynamic range (SFDR) for single-tone, as well as for multi-tone signals-essential when used for the transmit signal path of communication systems. The DAC902 has a high impedance current output with a nominal range of 20mA and an output compliance of up to 1.25V. The differential outputs allow for both a differential or single-ended analog signal interface. The close matching of the current outputs ensures superior dynamic performance in the differential configuration, which can be implemented with a transformer. Utilizing a small geometry CMOS process, the monolithic DAC902 can be operated on a wide, single-supply range of 2.7 to 5.5V. Its low power consumption allows for use in portable and battery-operated systems.
- Low glitch - 3pV-s
- Adjustable full-scale range
- Low power - 170mW at 5V
- Green product and no Sb/Br
DAC902E Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | TSSOP-28 |
| Number of Outputs | 1 Output |
| Supply Current | 24.0 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 28 Position |
| Number of Bits | 12 Bit |
| Power Dissipation | 0.23 W |
| Sample Rate | 200 Msps |
| Power Consumption | 170 mW |
| Thermal Shutdown | No |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 230 mW |
| Number of DACs | 1 DAC |
| Supply Voltage | 2.7V ~ 5.5V |
| Show | |
| Size-Length | 9.7 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
