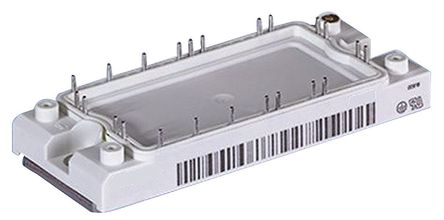

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

DDB6U100N16RR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	17 Pin
Case/Package	DDB-6
Output Current	60 A
Max Forward Surge Current (Ifsm)	650 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	350000 mW
	Show
Size-Length	107.5 mm
Size-Width	45 mm
Size-Height	17 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tray
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
