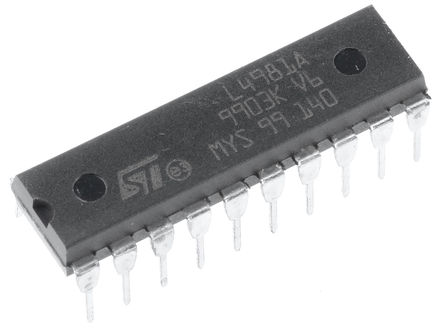

L4981A - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC50069981
Category:
Power Management IC
Package:
DIP-20
Datasheet:
Datasheet 3D Model
Description:
L4981 Series 19.5V 16mA Through Hole Power Factor Corrector - DIP-20
Stock Locations:
Availability:
10,227 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.27

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L4981A is a Power Factor Corrector provides the necessary features to achieve a very high power factor up to 0.99. Realized in BCD 60II technology this power factor corrector (PFC) pre-regulator contains all the control functions for designing a high efficiency-mode power supply with sinusoidal line current consumption. The L4981 can be easily used in systems with mains voltages between 85V to 265V without any line switch. This new PFC offers the possibility to work at fixed frequency optimizing the size of the input filter; the operating frequency mode working with an average current-mode PWM controller, maintaining sinusoidal line current without slope compensation. Besides power MOSFET gate driver, precise voltage reference (externally available), error amplifier, under-voltage lockout, current sense and the soft start are included. To limit the number of the external components, the device integrates protections as overvoltage and overcurrent.
Limit line current distortion to <5%
Universal input mains
Feed forward line and load regulation
Average current mode PWM for minimum noise sensitivity
High current bipolar and DMOS totem pole output
Under voltage lockout with hysteresis and programmable turn on
Threshold overvoltage, overcurrent protection
Precise 2% on chip reference externally available
Soft-start

Show

L4981A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	DIP-20
Frequency	115 kHz
Supply Voltage (DC)	19.5V (max)
Number of Outputs	1 Output
Output Voltage	7.50 V
Number of Positions	20 Position
Switching Frequency	100 kHz
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	14.5V ~ 19.5V
Supply Voltage (Max)	19.5 V
	Show
Size-Length	25.4 mm
Size-Width	7.1 mm
Size-Height	2.68 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
