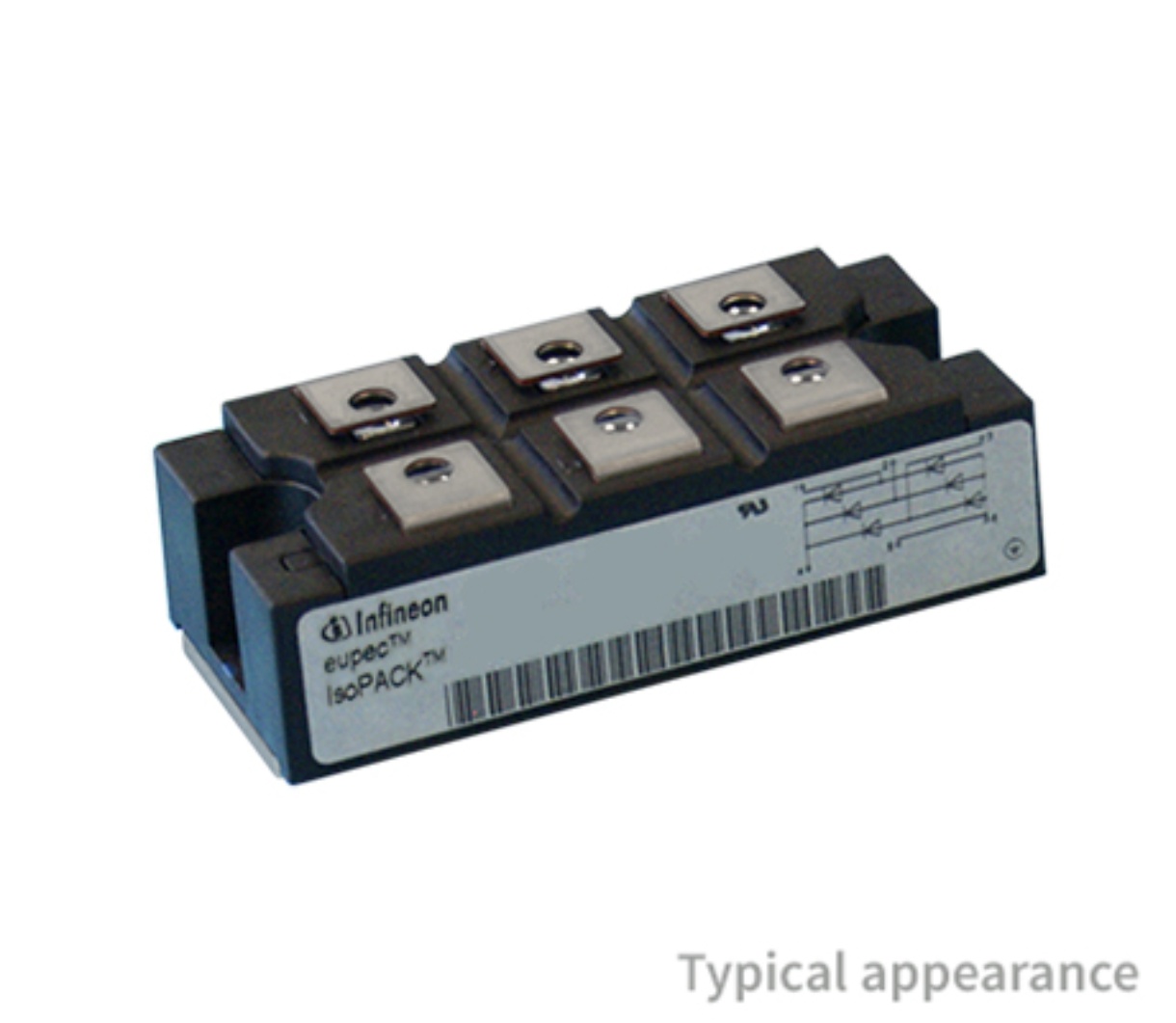

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Modules with screwable power terminals
- Concept designed for replacing 3 x 20mm SCR / diode half bridge modules
- Housing concept matches the 62 mm IGBT modules
DDB6U145N16L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 6 Pin |
| Case/Package | DDB-6 |
| Output Current | 100 A |
| Max Repetitive Reverse Voltage (Vrrm) | 1600V |
| Forward Current | 173 A |
| Max Forward Surge Current (Ifsm) | 1.2 kA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 94 mm |
| Size-Width | 42 mm |
| Size-Height | 30 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| RoHS | Non-Compliant |
| Lead-Free Status | Lead Free |
