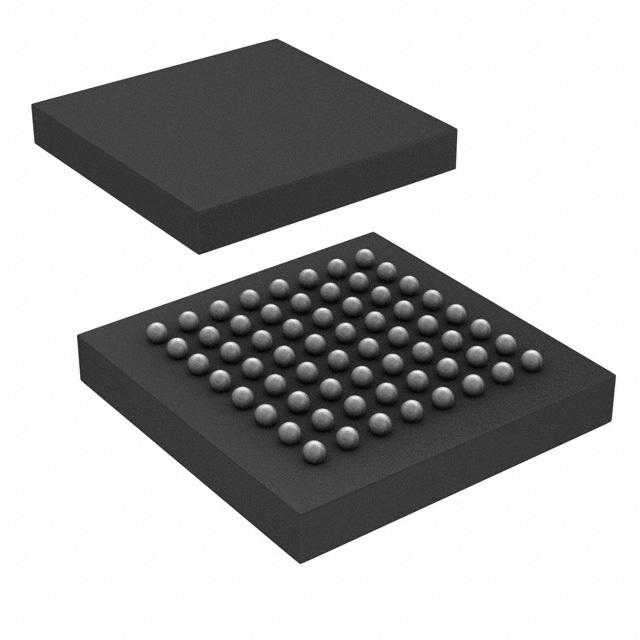

Image is for your reference only,please check specifications for details
- DDC232CGXGT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC105325808
-
Category:Analog to Digital, ADC IC
-
Package:NFBGA-64
-
Datasheet:Datasheet 3D Model
-
Description:32Channel Hexadecimal ADC Delta-Sigma 6KSPS 20Bit Serial 64Pin NFBGA T/R
-
Stock Locations:
-
Availability:835 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 107.97
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DDC232 is a 20-bit, 32-channel, current-input analog-to-digital (A/D) converter. It combines both current-to-voltage and A/D conversion so that 32 separate low-level current output devices, such as photodiodes, can be directly connected to its inputs and digitized.
- For each of the 32 inputs, the DDC232 provides a dual-switched integrator front-end. This configuration allows for continuous current integration: while one integrator is being digitized by the onboard A/D converter, the other is integrating the input current. Adjustable integration times range from 166µs to 1s, allowing currents from fAs to µAs to be continuously measured with outstanding precision.
- The DDC232 has a serial interface designed for daisy-chaining in multi-device systems. Simply connect the output of one device to the input of the next to create the chain. Common clocking feeds all the devices in the chain so that the digital overhead in a multi-DDC232 system is minimal.
- The DDC232 uses a +5V analog supply and a +2.7V to +3.6V digital supply. Operating over the temperature range of 0°C to +70°C, the DDC232 BGA-64 package is offered in two versions: the DDC232C for low-power applications, and the DDC232CK when higher speeds are required.
DDC232CGXGT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 64 Pin |
| Case/Package | NFBGA-64 |
| Supply Voltage (DC) | 4.75V (min) |
| Supply Current | 41.0 mA |
| Number of Circuits | 16 Circuit |
| Number of Bits | 20 Bit |
| Power Dissipation | 224 mW |
| Sample Rate | 6 ksps |
| Power Consumption | 224 mW |
| Number of ADCs | 32 ADC |
| Number of Inputs | 32 Input |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 288 mW |
| Number of Input Channels | 32 Channel |
| Show | |
| Size-Height | 1.01 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
