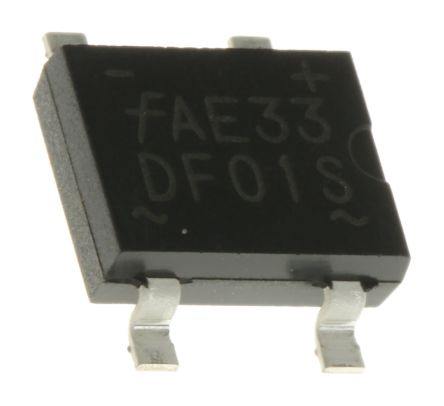

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

DF01S Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SDIP-4
Number of Positions	4 Position
Forward Voltage	1.1 V
Power Dissipation	3100 mW
Forward Current	1.5 A
Max Forward Surge Current (Ifsm)	50 A
Maximum Forward Voltage (Max)	1.1 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	3100 mW
	Show
Size-Length	8.51 mm
Size-Width	6.5 mm
Size-Height	3.3 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
ECCN Code	EAR99
