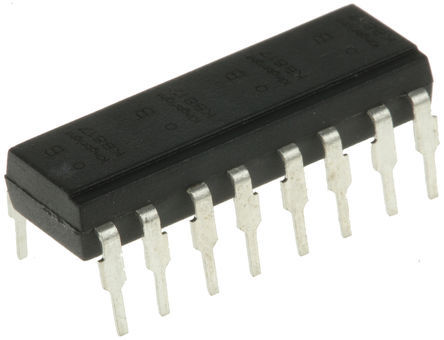

- DG211CJZ - Intersil
-
Manufacturer:Intersil
-
ManyChip's Part#:MC73408800
-
Category:Analog Switch Ic, Analog Switch Multiplexer
-
Package:DIP-16
-
Datasheet:Datasheet 3D Model
-
Description:SPST 4Channel Analog Switches; PDIP16, SOIC16; Temp Range: 0° to 70°
-
Stock Locations:
-
Availability:279 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.3
Updated at 29/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DG211CJZ is a single-pole single-throw (SPST) monolithic quad CMOS Analog Switch can be used in general purpose switching applications. It provides true bidirectional performance in the ON condition and blocks signals to 30VP-P in the OFF condition.
- TTL Compatible
- Logic inputs accept negative voltages
DG211CJZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 16 Pin |
| Case/Package | DIP-16 |
| Number of Outputs | 4 Output |
| Supply Current | 100 nA |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 16 Position |
| Drain to Source Resistance (on) (Rds) | 175 Ω |
| Number of Inputs | 4 Input |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Show | |
| Size-Length | 19.68 mm |
| Size-Width | 7.11 mm |
| Size-Height | 4.95 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
