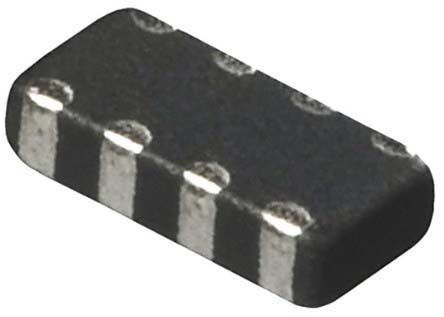

Image is for your reference only,please check specifications for details
- DLP2ADA900HL4L - muRata
-
Manufacturer:muRata
-
ManyChip's Part#:MC3658332
-
Category:Inductor Choke
-
Package:2010
-
Datasheet:Datasheet 3D Model
-
Description:Ind Common Mode Choke Shielded Thin Film 90Ω 20% 100MHz 120mA 0804 Embossed T/R
-
Stock Locations:
-
Availability:13 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.2
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 4 Line Common Mode Choke Surface Mount 90 Ohms @ 100MHz 120mA DCR 1.75Ohm
DLP2ADA900HL4L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | 2010 |
| Voltage Rating (DC) | 5 V |
| Current Rating | 120 mA |
| Insulation Resistance | 100 MΩ |
| Resistance | 90.0 Ω |
| Impedance | 90.0 Ω |
| Test Frequency | 100 MHz |
| Current Rating (Max) | 120 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 5 VDC |
| Resistance (DC Max) | 1.75 Ω |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.1 mm |
| Size-Height | 0.92 mm |
| Weight | 0.009 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Not Recommended for New Design |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
