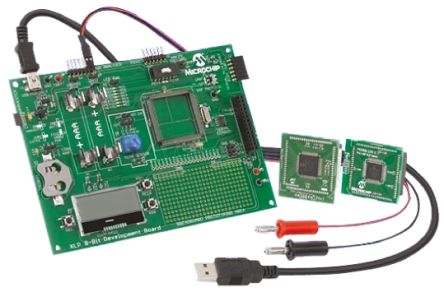

Image is for your reference only,please check specifications for details
- DM240313 - Microchip
-
Manufacturer:Microchip
-
ManyChip's Part#:MC8197758
-
Category:Microprocessor Primary Platform
-
Datasheet:Datasheet 3D Model
-
Description:PIC18F87K22/PIC16LF1947 Microcontroller Development Board 0.032768MHz/10MHz CPU 128KB/28KB Serial EEPROM/Flash
-
Stock Locations:
-
Availability:5 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 128.06
Updated at 27/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DM240313 is a XLP 8bit Development Board functions as a demonstration platform on initial power up. Designed as a true platform for low cost, highly configurable development system for new line of extreme low power 8bit PIC18 F or PIC16F enhanced core microcontrollers that allow for design of sleep currents down to 20nA. The board supports development for the PIC18F87K22 or PIC16LF1947 MCUs, which highlight the capabilities of each product family. The board can be powered by five different power sources including batteries or energy harvesting modules (sold separately), and it supports a variety of common components that can be selective enabled. The board is also expandable through the on board PICtail connector that permits the addition of capabilities such as RF connectivity. Board is pre programmed with a demonstration program.
- Built in capability for separately measuring microcontroller and board current consumption
- Current measurement terminals allow device or board level current measurements
- Expansion connector accessing full device pin out and breadboard prototype area
- Convenient connections for MPLAB PICkit 3, ICD3 or REAL ICE for in circuit programming and debugging
- USB interface for power and PC communication
- 24AA256 Low Power (100nA Sleep, 1.7V Vdd) SPI serial EEPROM
- Potentiometer (connected to 10bit A/D, analog input channel)
- Analog output temperature sensor and CTMU based diode temperature sensor
- LEDs for indication
- Power Options include AAA, CR2032, energy harvesting, USB, external, or 9V power supply
DM240313 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Bits | 8 Bit |
| Core Architecture | PIC |
| Core Sub-Architecture | PIC18 |
| Show | |
| Product Lifecycle Status | Unknown |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
