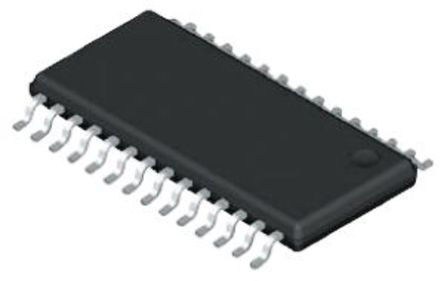

Image is for your reference only,please check specifications for details

AD9051BRSZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC534700
Category:
Analog to Digital, ADC IC
Package:
SSOP-28
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD9051BRSZ Analog to Digital Converter, 10Bit, 60MSPS, Single, 5V, SSOP
Stock Locations:
Availability:
279 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 56.99

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD9051BRSZ is a 10-bit monolithic sampling Analog-to-digital Converter (ADC) with an on board track-and-hold and reference. The unit is designed for high performance applications and requires only 5V and an encode clock to achieve 60MSPS sample rates with 10-bit resolution. The encode clock is TTL compatible and the digital outputs are CMOS both can operate with 5/3V logic. The 2-step architecture used in the converter is optimized to provide the best dynamic performance available while maintaining low power consumption. A 2.5V reference is included on board or the user can provide an external reference voltage for gain control or matching of multiple devices.
On-chip T/H and voltage reference

Show

AD9051BRSZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SSOP-28
Supply Voltage (DC)	5.00V (max)
Supply Current	50.0 mA
Number of Circuits	1 Circuit
Number of Positions	28 Position
Number of Bits	10 Bit
Power Dissipation	250 mW
Sample Rate	60 Msps
Resolution (Bits)	10.0 Bit
Input Capacitance	5.00 pF
Input Impedance	6.00 kΩ
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	315 mW
Number of Input Channels	1 Channel
Supply Voltage (Max)	5 V
	Show
Size-Length	10.2 mm
Size-Width	5.3 mm
Size-Height	1.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
