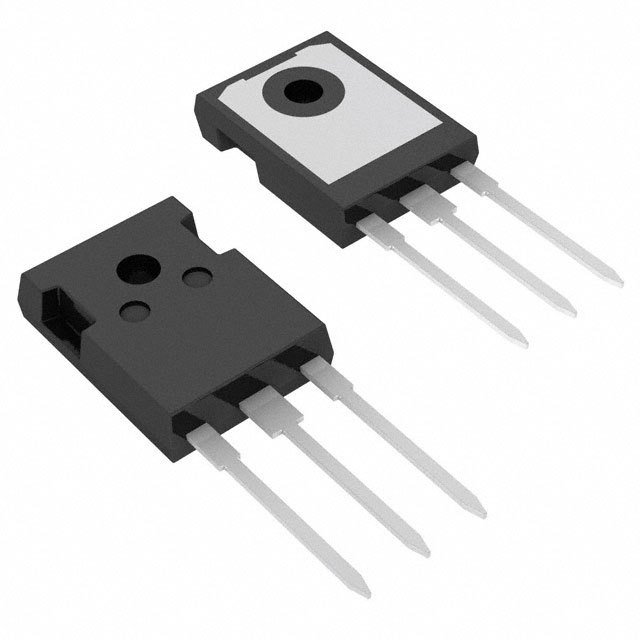

Image is for your reference only,please check specifications for details

DPG30C300HB - IXYS Semiconductor
Manufacturer:
IXYS Semiconductor
ManyChip's Part#:
MC42374860
Category:
Diode Array, TVS Diode Array
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
Rectifier Diode, Schottky, 1 Phase, 2Element, 30A, 100V V(RRM), Silicon, TO-220AB, ROHS COMPLIANT, PLASTIC PACKAGE-3
Stock Locations:
Availability:
121 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.41

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

DPG30C300HB Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Forward Voltage	1 V
Power Dissipation	90 W
Reverse recovery time	35 ns
Forward Current	15 mA
Max Forward Surge Current (Ifsm)	150 A
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	15 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature (Max)	175 ℃
	Show
Size-Length	16.24 mm
Size-Width	5.3 mm
Size-Height	21.45 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
