74HCT14N NXP - Logic Control, Logic Gate IC

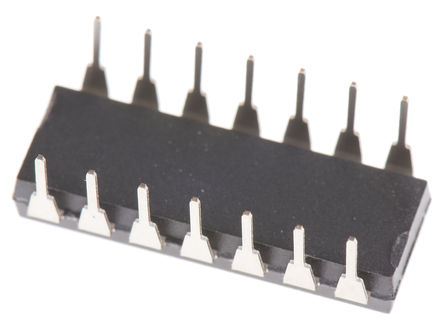

Image is for your reference only,please check specifications for details

74HCT14N - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC124907428
Category:
Logic Control, Logic Gate IC
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
Инвертирующий логический элемент NXP 74HCT14N, семейство HCT, триггер Шмитта, 6 элементов, 1 вход, 4 мА, от 4,5 В до 5,5 В, корпус DIP-14
Stock Locations:
Availability:
1,843 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.98

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

74HCT14N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP
Supply Voltage (DC)	5.00 V
Output Current	4 mA
Number of Circuits	6 Circuit
Number of Positions	14 Position
Power Dissipation	750 mW
Number of Gates	6 Gate
Input Capacitance	3.50 pF
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	5 V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	19.5 mm
Size-Width	6.48 mm
Size-Height	3.2 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
