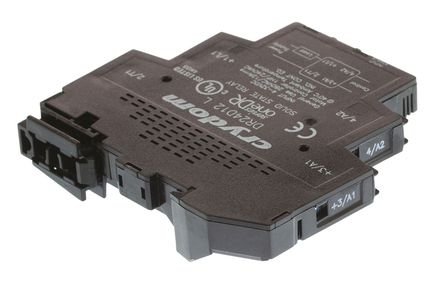

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * 6 & 12 Amps output power rating
- * 60 & 100 VDC, 24 to 600 VAC operating voltage ratings
- * 4-32 VDC, 24, 120 & 230 VAC control input options available
- * IP20 housing with unique integrated heat sink design (Patent Pending)
- * AC Output versions with Zero Voltage Turn-On for resistive loads and Random Turn-On for inductive loads
- * High power density for multiple units
- * UL & cUL approved including General Purpose and Motor Controller ratings
- * CE & RoHS compliant
DR24D12 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Number of Pins | 4 Pin |
| Case/Package | Module |
| Current Rating | 12 A |
| Output Voltage | 24V ~ 280V |
| Load Current | 12 A |
| Input Current | 9mA ~ 11mA |
| Isolation Voltage | 4000 v |
| Input Voltage (Max) | 32 V |
| Input Voltage (Min) | 4 V |
| Output Voltage (Max) | 280 V |
| Input Current (Min) | 11 mA |
| Load Current (Max) | 12 Arms |
| Load Current (Min) | 150 mArms |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Voltage Rating | 280 VAC |
| Operating Voltage (Min) | 24 VAC |
| Operating Voltage (Max) | 280 VAC |
| Input Voltage | 4VDC ~ 32VDC |
| Show | |
| Size-Length | 83.7 mm |
| Size-Height | 90.3 mm |
| Operating Temperature | -30℃ ~ 80℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536490080 |
| ECCN Code | EAR99 |
