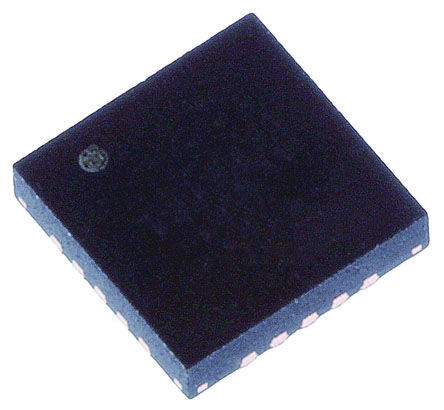

DRV2700RGPT - TI
Manufacturer:
TI
ManyChip's Part#:
MC5086163
Category:
Linear Regulator
Package:
VQFN-20
Datasheet:
Datasheet 3D Model
Description:
DRV2700 High Voltage Driver with Integrated Boost Converter 20-QFN -40℃ to 85℃
Stock Locations:
Availability:
232 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.99

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DRV2700RGPT is a single-chip Piezo Driver with an integrated 105V boost switch, integrated power diode and integrated fully-differential amplifier. This versatile device is capable of driving both high-voltage and low-voltage piezoelectric loads. The input signal can be either differential or single-ended and AC or DC coupled. The device supports four GPIO-controlled gains of 28.8/34.8/38.4/40.7dB. The boost voltage is set using two external resistors. The boost current-limit is programmable through the R(REXT) resistor. The boost converter architecture does not allow the demand on the supply current to exceed the limit set by the R(REXT) resistor which allows the user to optimize the device circuit for a given inductor based on the desired performance requirements. Additionally, this boost converter is based on a hysteretic architecture to minimize switching losses and therefore increase efficiency. Thermal overload protection prevents the device from damage when overdriven.
Differential or single-ended output
Low-voltage control
AC and DC output control
Adjustable current-limit
Integrated power FET and diode
1.5ms Fast start-up time
Green product and no Sb/Br

Show

DRV2700RGPT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	VQFN-20
Number of Channels	1 Channel
Number of Positions	20 Position
Common Mode Rejection Ratio	100 dB
Bandwidth	550 kHz
Slew Rate	600 mV/μs
Gain Bandwidth Product	0.55 MHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Minimum CMRR Range	95dB ~ 105dB
Supply Voltage	3V ~ 5.5V
Supply Voltage (Max)	5V ~ 7V
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
