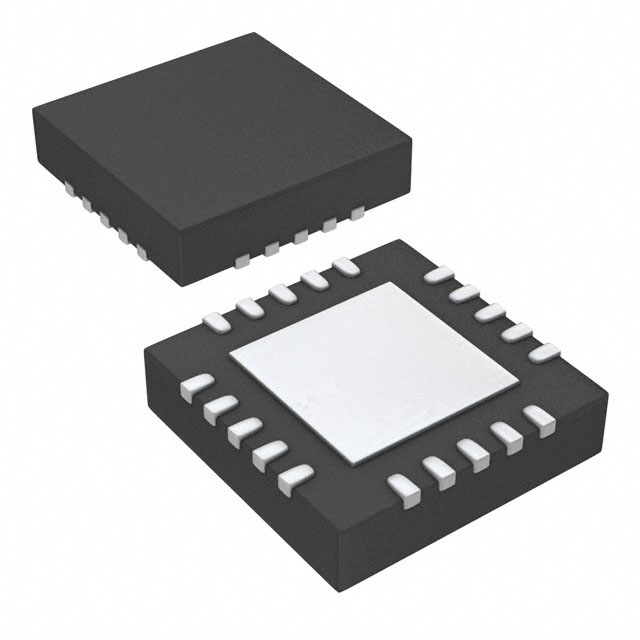

DRV425RTJT - TI
Manufacturer:
TI
ManyChip's Part#:
MC3109030
Category:
Magnetic Sensor
Package:
VFQFN-20
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DRV425RTJT Current Sensor, 7mA, 47kHz, WQFN, 20Pins, 3V, 5.5V
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DRV425RTJT is an Integrated Fluxgate Sensor (IFG) with an internal compensation coil, designed for single-axis magnetic field-sensing applications and enables electrically isolated, high-sensitivity and precise DC- and AC-field measurements. The low offset, offset drift and noise of the sensor, combined with the precise gain, low gain drift and very low nonlinearity provided by the internal compensation coil, result in unrivalled magnetic field measurement precision. The output of the DRV425 is an analogue signal proportional to the sensed magnetic field. The DRV425 offers a complete set of features, including an internal difference amplifier, on-chip precision reference and diagnostic functions.
High-precision, integrated fluxgate sensor
±8µT (Maximum) Offset
±5nT/°C (Typical) Offset drift
0.04% (Typical) Gain error
±7ppm/°C (typical) Gain drift
±0.1% Linearity
1.5nT/√Hz (Typical) Noise
±2mT (maximum) Sensor range
Range and gain adjustable with external resistor
2% (maximum) Accuracy
50ppm/°C (maximum) Drift
VDD/2 Selectable ratiometric mode

Show

DRV425RTJT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	VFQFN-20
Supply Voltage (DC)	3.00V (min)
Number of Positions	20 Position
Quiescent Current	7 mA
Bandwidth	47 kHz
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	2 %
Supply Voltage	3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	Show
Size-Length	4.15 mm
Size-Width	4.15 mm
Size-Height	0.8 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
