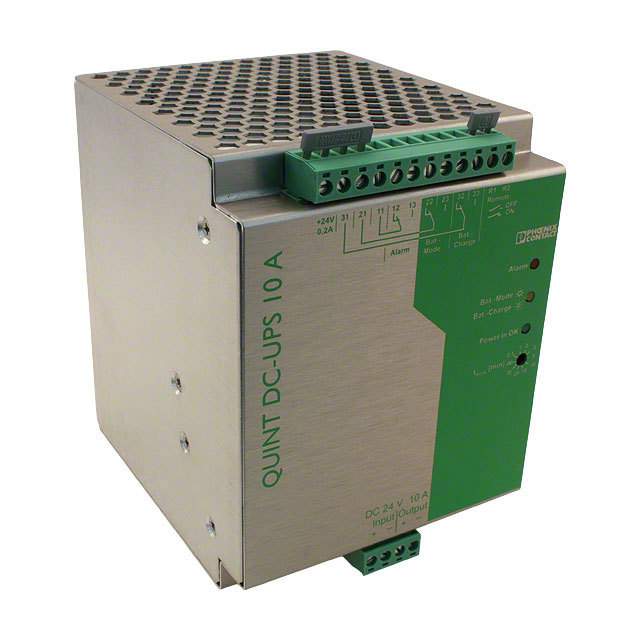

Image is for your reference only,please check specifications for details

2866226 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC11209133
Category:
UPS, Uninterruptible Power Supply
Datasheet:
Datasheet 3D Model
Description:
Module: UPS; 240W; 24VDC; 10A; 22.5÷30VDC; Mounting: DIN; IP20; 1.8kg
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The QUINT DC to DC UPS is a family of 24 VDC uninterruptible power supplies that are scalable and DIN-Rail mountable. These industrial grade UPS systems are ideal for the factory floor or process environment. The UPS remains in a stand-by mode until back-up power is required. There is a "bump-less" transition between main power and battery backup power. The UPS also provides full battery diagnostics as well as dry contacts for status indication and an input for remote shut-down for conserving battery power.
**Functionality:**
The QUINT DC UPS is designed to provide backup power for a predetermined load current and time period. For load currents up to 40 amps and time periods up to 3 hours, the QUINT DC UPS products in conjunction with the QUINT batteries must be used.
The QUINT-DC-UPS/24DC/10 has a built in battery which provides up to 10 amps via its integrated 1.3 Ah battery module. For larger load and longer back-up capacity, see part numbers, 2866239 (20A) & 2866242 (40A)
**Features
**
* Modular DC-DC UPS System
* Electronic Overload/Current Limiting Protection
* Built-In, Dialable Timed Shut-Off for Conserving Battery Back-Up Power
* Remote Shut-Off Contact
* Full Battery Management Including Automatic Presence and Quality Check
* Temperature Compensated Battery Charging
* Integrated Decoupling Diode on Input
* Diagnostic Feedback Via Built-In LED Indication and Alarm Outputs
* "Bump-Less" Transition from Standard Power to UPS Back-Up Power
* UL 508 Listed
