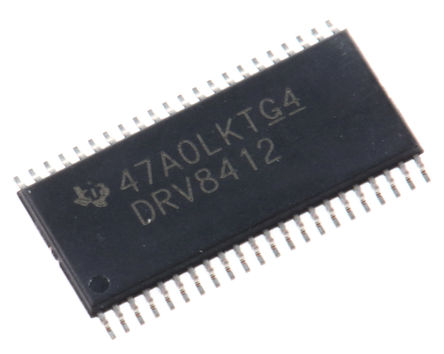

Image is for your reference only,please check specifications for details

DRV8412DDW - TI
Manufacturer:
TI
ManyChip's Part#:
MC12792137
Category:
Motor Driver
Package:
HTSSOP-44
Datasheet:
Datasheet 3D Model
Description:
Motor Driver/Controller, Full Bridge, 0V to 52.5V supply, 0.08Ω RDS, 5V/12A/2Outputs, HTSSOP-44
Stock Locations:
Availability:
1,258 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.62

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DRV8412DDW is a high-performance dual brushed DC or single bipolar Stepper Motor Driver with an advanced protection system. Because of the low RDS (ON) of the H-bridge MOSFETs and intelligent gate drive design, the efficiency of this motor driver can be up to 97%. This high efficiency enables the use of smaller power supplies and heat sinks and the devices are good candidates for energy-efficient applications. The DRV8412 requires two power supplies, one at 12V for GVDD and VDD and another up to 50V for PVDD. The motor driver can operate at up to 500kHz switching frequency while still maintaining precise control and high efficiency. This device also has an innovative protection system safeguarding the device against a wide range of fault conditions that could damage the system. This safeguard is short-circuit protection, over-current protection, under-voltage protection and two-stage thermal protection.
Integrated self-protection includes under-voltage, over-temperature, overload and short-circuit
Programmable cycle-by-cycle current limit protection
Independent supply and ground pins for each half bridge
Intelligent gate drive and cross conduction prevention
No external snubber or Schottky diode is required
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

DRV8412DDW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	44 Pin
Case/Package	HTSSOP-44
Supply Voltage (DC)	0.00V(min), 52.5V(max)
Number of Outputs	2 Output
Output Voltage	5 V
Output Current	12 A
Number of Positions	44 Position
Switching Frequency	500 kHz
Output Current (Max)	6 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	10.8V ~ 13.2V
Supply Voltage (Max)	52.5 V
Supply Voltage (Min)	0 V
	Show
Size-Length	14.1 mm
Size-Width	6.2 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
