DRV8803DW TI - Motor Driver - ManyChip Electronics

Image is for your reference only,please check specifications for details

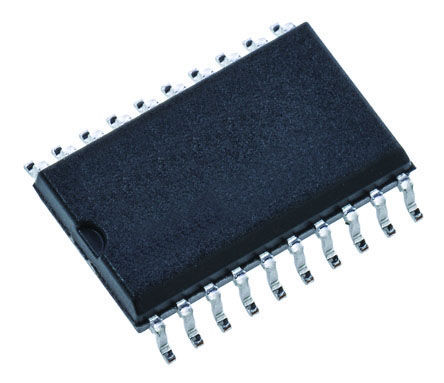

DRV8803DW - TI
Manufacturer:
TI
ManyChip's Part#:
MC35502296
Category:
Motor Driver
Package:
SOIC-20
Datasheet:
Datasheet 3D Model
Description:
2А однофазный шаговый двигатель или 1А четырёхканальный драйвер соленоидов/реле (PWM управление) 20-SOIC, от -40°C до 85°C
Stock Locations:
Availability:
76 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 17.29

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The DRV8803 provides a 4-channel low side driver with overcurrent protection. It has built-in diodes to clamp turn-off transients generated by inductive loads and can be used to drive unipolar stepper motors, DC motors, relays, solenoids, or other loads.
FEATURES
• 4-Channel Protected Low-Side Driver
– Four NMOS FETs With Overcurrent Protection
– Integrated Inductive Catch Diodes
– Parallel Interface
• DW Package: 1.5-A (Single Channel On) / 800-mA (Four Channels On) Maximum Drive Current per Channel (at 25°C)
• PWP Package: 2-A (Single Channel On) / 1-A (Four Channels On) Maximum Drive Current per Channel (at 25°C, With Proper PCB Heatsinking)
• 8.2-V to 60-V Operating Supply Voltage Range
• Thermally Enhanced Surface Mount Package
APPLICATIONS
• Relay Drivers
• Unipolar Stepper Motor Drivers
• Solenoid Drivers
• General Low-Side Switch Applications
