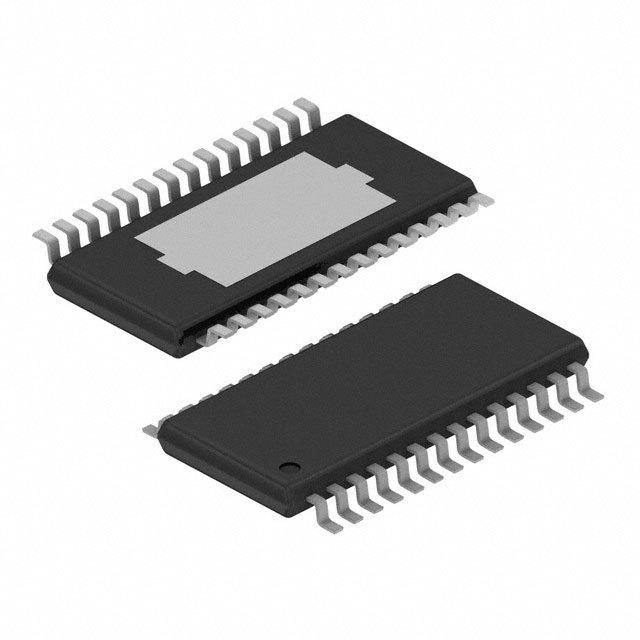

Image is for your reference only,please check specifications for details
- DRV8818PWPR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC5071225
-
Category:Motor Driver
-
Package:HTSSOP-28
-
Datasheet:Datasheet 3D Model
-
Description:2.5A Bipolar Stepper Motor Driver with On-Chip 1/8 Microstepping Indexer (Step/Dir Ctrl) 28-HTSSOP -40℃ to 85℃
-
Stock Locations:
-
Availability:2,095 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.83
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Pulse Width Modulation (PWM) Microstepping Motor Driver * Built-In Microstepping Indexer * Up to 1/8 Microstepping * Step and Direction Control * Programmable Mixed Decay, Blanking, and Off Time * Up to 2.5-A Current Per Winding * Low 0.37-Ω (HS + LS) MOSFET RDS(ON) (25°C) * 8-V to 35-V Operating Supply Voltage Range * Pin to Pin Upgrade for DRV8811 With Lower RDS(ON) * Thermally Enhanced Surface Mount Package * Protection Features * VM Undervoltage Lockout (UVLO) * Overcurrent Protection (OCP) * Thermal Shutdown (TSD) * Fault Condition Indication Pin (nFAULT)
DRV8818PWPR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | HTSSOP-28 |
| Number of Outputs | 1 Output |
| Output Voltage | 35 V |
| Output Current | 2.5 A |
| Number of Positions | 28 Position |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
