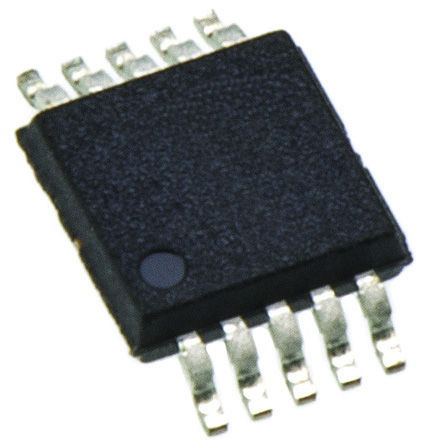

DRV8830DGQR - TI
Manufacturer:
TI
ManyChip's Part#:
MC8352604
Category:
Motor Driver
Package:
PowerPad-MSOP-10
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DRV8830DGQR Voltage-Controller Motor Driver with Serial Interface, 2.75V to 6.8V supply, 1A/2Outputs, MSOP-10
Stock Locations:
Availability:
225 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.24

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DRV8830DGQR is a 1A Low Voltage Brushed DC Motor Driver with speed regulation (I²C Ctrl) provides an integrated motor driver solution. The device has one H-bridge driver and can drive one DC motor or one winding of a stepper motor, as well as other loads like solenoids. The output driver block consists of N-channel and P-channel power MOSFET"s configured as an H-bridge to drive the motor winding. Provided with sufficient PCB heat sinking, the DRV8830 can supply up to 1A of DC/RMS or peak output current. It operates on power supply voltages from 2.75 to 6.8V. To maintain constant motor speed over varying battery voltages while maintaining long battery life, a PWM voltage regulation method is provided. The output voltage is programmed via an I²C-compatible interface, using an internal voltage reference and DAC. Internal protection functions are provided for over current, short-circuit, under-voltage lockout and over-temperature protection.
H-bridge voltage-controlled motor driver
Low MOSFET on-resistance
300nA Typical sleep mode current
Serial I²C compatible interface
Current limit circuit and fault output
Green product and no Sb/Br
ESD sensitive device, take proper precaution while handling the device.

Show

DRV8830DGQR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	PowerPad-MSOP-10
Supply Voltage (DC)	2.75V (min)
Number of Outputs	2 Output
Output Current	1 A
Supply Current	1.4 mA
Number of Positions	10 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.75V ~ 6.8V
Supply Voltage (Max)	6.8 V
Supply Voltage (Min)	2.75 V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
