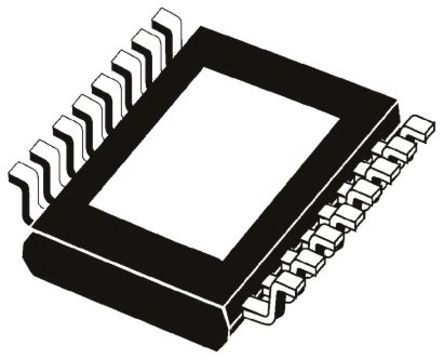

Image is for your reference only,please check specifications for details

DRV8833PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC19722715
Category:
Motor Driver
Package:
HTSSOP-16
Datasheet:
Datasheet 3D Model
Description:
2A Low Voltage Dual Brushed DC or Single Bipolar Stepper Motor Driver (PWM Ctrl) 16-HTSSOP -40℃ to 85℃
Stock Locations:
Availability:
298 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.45

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The DRV8833 device provides a dual bridge motor driver solution for toys, printers, and other mechatronic applications.
The device has two H-bridge drivers, and can drive two DC brush motors, a bipolar stepper motor, solenoids, or other inductive loads.
The output driver block of each H-bridge consists of N-channel power MOSFETs configured as an H-bridge to drive the motor windings. Each H-bridge includes circuitry to regulate or limit the winding current.
Internal shutdown functions with a fault output pin are provided for overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature. A low-power sleep mode is also provided.
The DRV8833 is packaged in a 16-pin WQFN package with PowerPAD™ (Eco-friendly: RoHS & no Sb/Br).
Features
• Dual-H-Bridge Current-Control Motor Driver
– Can Drive Two DC Motors or One Stepper Motor
– Low MOSFET ON-Resistance: HS + LS 360 mΩ
• Output Current (at VM = 5 V, 25°C)
– 1.5-A RMS, 2-A Peak per H-Bridge in PWP and RTY Package Options
– 500-mA RMS, 2-A Peak per H-Bridge in PW Package Option
• Outputs can be in Parallel for
– 3-A RMS, 4-A Peak (PWP and RTY)
– 1-A RMS, 4-A Peak (PW)
• Wide Power Supply Voltage Range: 2.7 to 10.8 V
• PWM Winding Current Regulation and Current Limiting
• Thermally Enhanced Surface-Mount Packages
Applications
• Battery-Powered Toys
• POS Printers
• Video Security Cameras
• Office Automation Machines
• Gaming Machines
• Robotics

Show

DRV8833PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	HTSSOP-16
Number of Outputs	2 Output
Output Current	1.5 A
Drain to Source Resistance (on) (Rds)	360 mΩ
Switching Frequency	50 kHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 10.8V
	Show
Size-Length	5.1 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
