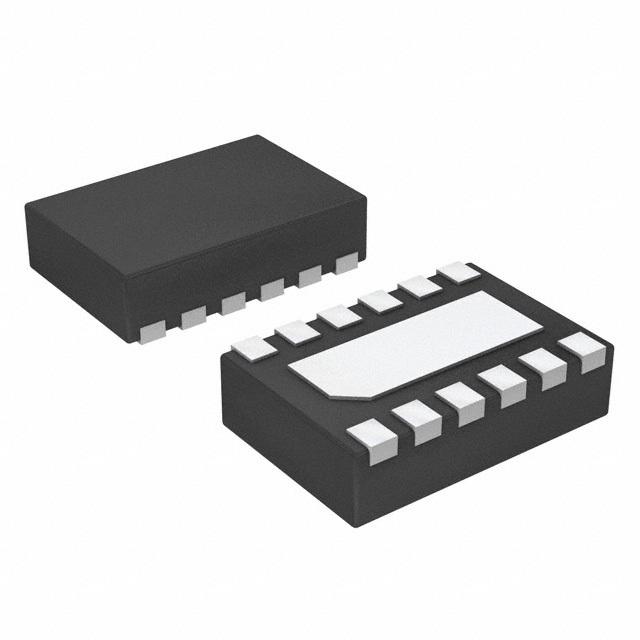

DRV8839DSSR - TI
Manufacturer:
TI
ManyChip's Part#:
MC2192404
Category:
Motor Driver
Package:
WSON-12
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DRV8839DSSR Motor Driver, Dual, H-Bridge, 1.8V to 7V supply, 1.8A/2Outputs, WSON-12
Stock Locations:
Availability:
435 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.25

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DRV8839DSSR is a dual low voltage Half-bridge Driver with individual control interface. The device has two independent 1/2-H-bridge drivers and can drive one DC motor or one winding of a stepper motor, as well as other devices like solenoids. The output stages use N-channel power MOSFETs configured as 1/2-H-bridges. An internal charge pump generates needed gate-drive voltages. It can supply up to 1.8A of output current. It operates on a motor power supply voltage from 0 to 11V and a device power supply voltage of 1.8 to 7V. It has independent input and enables pins for each 1/2-H-bridge which allow independent control of each output. Internal shutdown functions are provided for overcurrent protection, short-circuit protection, under-voltage lockout and over-temperature.
Separate motor and logic supply pins
Individual 1/2-H-bridge control input interface
Low-power sleep mode with 120nA maximum combined supply current
280mR HS + LS Low MOSFET on-resistance
Green product and no Sb/Br

Show

DRV8839DSSR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	WSON-12
Supply Voltage (DC)	1.80V (min)
Number of Outputs	2 Output
Output Current	1.8 A
Number of Positions	12 Position
Drain to Source Resistance (on) (Rds)	280 mΩ
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8V ~ 7V
Supply Voltage (Max)	7 V
Supply Voltage (Min)	1.8 V
	Show
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
