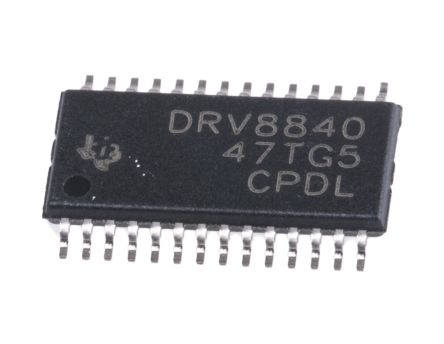

DRV8840PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC18420703
Category:
Motor Driver
Package:
HTSSOP-28
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DRV8840PWP Motor Driver, Brushed, 8.2V to 45V supply, 3.3V/2.5A/2Outputs, HTSSOP-28
Stock Locations:
Availability:
270 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.37

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DRV8840PWP is a 5A Brushed DC Motor Driver with inrush protection (PH/EN Ctrl). The DRV8840 provides an integrated motor driver solution for printers, scanners and other automated equipment applications. The device has one H-bridge driver and is intended to drive one DC motor. The output driver block for each consists of N-channel power MOSFET"s configured as full H-bridges to drive the motor windings. The DRV8840 can supply up to 5A peak output current (with proper heat sinking at 24V and 25°C). A simple parallel digital control interface is compatible with industry-standard devices. Decay mode is programmable to allow braking or coasting of the motor when disabled. Internal shutdown functions are provided for over-current protection, short-circuit protection, under-voltage lockout and over-temperature.
Single H-bridge current-control motor driver
5-bit winding current control allows up to 32 current levels
Low MOSFET on-resistance
Green product and no Sb/Br

Show

DRV8840PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	HTSSOP-28
Supply Voltage (DC)	8.20V (min)
Number of Outputs	2 Output
Output Voltage	3.3 V
Output Current	2.5 A
Number of Positions	28 Position
Drain to Source Resistance (on) (Rds)	200 mΩ
Switching Frequency	50 kHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	8.2V ~ 45V
Supply Voltage (Max)	45 V
Supply Voltage (Min)	8.2 V
	Show
Size-Length	9.8 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
