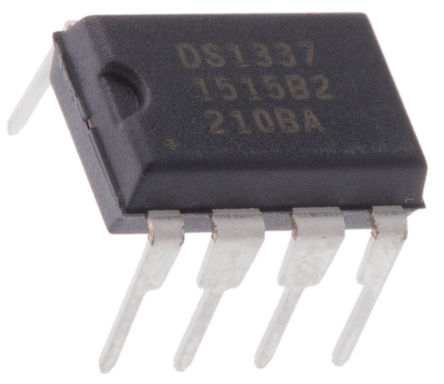

Image is for your reference only,please check specifications for details
- DS1337+ - Maxim Integrated
-
Manufacturer:Maxim Integrated
-
ManyChip's Part#:MC24334614
-
Category:Real Time Clock IC
-
Package:DIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Timer IC t- real time clock Maxim Integrated DS1337+ Clock/calendar PDIP 8
-
Stock Locations:
-
Availability:214 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.84
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DS1337+ is an I²C serial Real-time Clock with two programmable time-of-day alarms and a programmable square-wave output. Address and data are transferred serially through an I²C bus. The clock/calendar provides seconds, minutes, hours, day, date, month and year information. The date at the end of the month is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The clock operates in either the 24-hour or 12-hour format with AM/PM indicator. The device is fully accessible through the serial interface while VCC is between 1.8 and 5.5V. I²C operation is not guaranteed below 1.8V. Timekeeping operation is maintained with VCC as low as 1.3V.
- Completely manages all timekeeping functions - Two time-of-day alarms and oscillator stop flag
- Interfaces with most microcontrollers - I²C serial interface
DS1337+ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP-8 |
| Supply Voltage (DC) | 1.80V (max) |
| Operating Voltage | 1.8V ~ 5.5V |
| Number of Outputs | 2 Output |
| Number of Positions | 8 Position |
| Clock Speed | 0.032768 MHz |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 1.8V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Size-Length | 9.91 mm |
| Size-Width | 7.87 mm |
| Size-Height | 4.45 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
