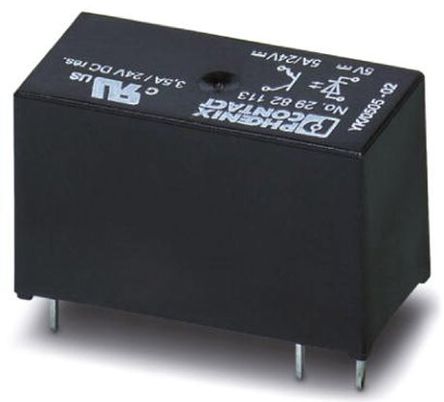

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **PLC-RSC Series**
- PLC Interface single- and double-pole relays, and opto-couplers, having the same profile. This allows the modules to be installled in any configuration with a common bridging system and using the same accessories. The V8 adapter connects 8 relays or opto-couplers to a 15 way D-SUB cable.
2982100 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | Module |
| Load Current | 5 A |
| Input Current | 7 mA |
| Power Dissipation | 170 mW |
| Isolation Voltage | 2.5 kV |
| Input Voltage (Max) | 1.2 V |
| Input Voltage (Min) | 0.8 V |
| Output Voltage (Max) | 33 V |
| Input Current (Min) | 7 mA |
| Maximum Forward Voltage (Max) | 24 V |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Power Dissipation (Max) | 170 mW |
| Input Voltage | 1.2 V |
| Show | |
| Size-Width | 12.7 mm |
| Operating Temperature | -25℃ ~ 60℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536410060 |
| ECCN Code | EAR99 |
