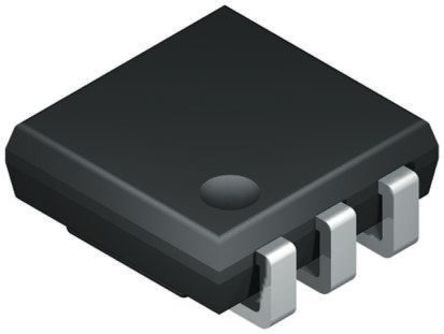

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DS2417P+ is a 1 wire time chip with interrupt in 6 pin TSOC package. The 1 wire time chip with Interrupt offers a simple solution for storing and retrieving vital time information with minimal hardware. The DS2417 contains a unique lasered ROM and a real time clock/calendar implemented as a binary counter. Only one pin is required for communication with the device. Utilizing a backup energy source, the data is non-volatile and allows for stand-alone operation. The DS2417 features can be used to add functions such as calendar, time and date stamp and logbook to any type of electronic device or embedded application that uses a microcontroller.
Supply voltage range is 2.5V to 5.5V
Operating temperature range from -40°C to 85°C
Real time clock (RTC) with fully compatible 1 wire MicroLAN interface
Uses the same binary time/date representation as the DS2404 but with 1 second resolution
Clock accuracy ±2 minutes per month at 25°C
Programmable interrupt output for system wakeup
Communicates at 16.3Kbits per second
Unique factory lasered and tested 64bit registration number
8bit family code specifies device communication requirements to bus master
Built-in multidrop controller ensures compatibility with other MicroLAN products
