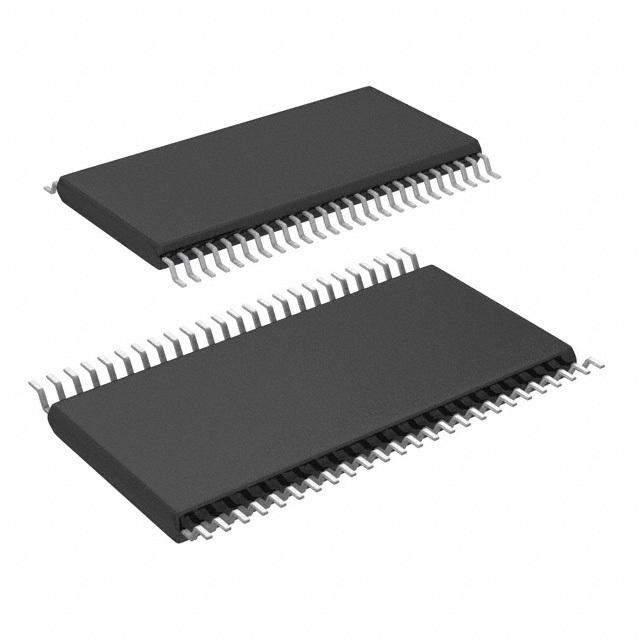

Image is for your reference only,please check specifications for details
- DS90C363BMT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC41021526
-
Category:Interface IC, Interface Controller
-
Package:TSSOP-48
-
Datasheet:Datasheet 3D Model
-
Description:+3.3V Programmable LVDS Transmitter 18Bit Flat Panel Display (FPD) Link - 65MHz 48-TSSOP -10 to 70
-
Stock Locations:
-
Availability:85 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.1
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DS90C363BMT is a 3.3V programmable LVDS Transmitter converts 21-bits of CMOS/TTL data into three LVDS (low voltage differential signalling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fourth LVDS link. Every cycle of the transmit clock 21-bits of input data are sampled and transmitted. At a transmit clock frequency of 65MHz, 18-bits of RGB data and 3-bits of LCD timing and control data (FPLINE, FPFRAME, DRDY) are transmitted at a rate of 455Mbps per LVDS data channel. Using a 65MHz clock, the data throughput is 170Mbps. The DS90C363B transmitter can be programmed for rising edge strobe or falling edge strobe through a dedicated pin. A rising edge or falling edge strobe transmitter will interoperate with a Falling edge strobe receiver (DS90CF366) without any translation logic. This chipset is an ideal means to solve EMI and cable size problems associated with wide, high speed TTL interfaces.
- No special start-up sequence required between clock/data and /PD pins
- Input signal (clock and data) can be applied either before or after the device is powered
- Supports spread spectrum clocking up to 100kHz frequency modulation
- Supports deviation of ±2.5% centre spread or -5% down spread
- Best-in-class set and hold times on TxINPUTs
- 40% Less power dissipation than BiCMOS alternatives
- Narrow bus reduces cable size
- Up to 1.3Gbps throughput
- Up to 170Mbps bandwidth
- 345mV Typical Swing LVDS devices for low EMI
- PLL requires no external components
- Compatible with TIA/EIA-644 LVDS standard
- Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
DS90C363BMT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | TSSOP-48 |
| Supply Voltage (DC) | 3.00V (min) |
| Number of Positions | 48 Position |
| Power Dissipation | 1980 W |
| Data Rate | 455 Mbps |
| Input Current (Min) | 10 μA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1980 mW |
| Supply Voltage | 3V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
