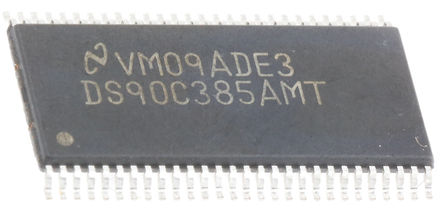

Image is for your reference only,please check specifications for details
- DS90C385AMT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC8323159
-
Category:LVDS, M-LVDS, ECL, CML IC
-
Package:TSSOP-56
-
Datasheet:Datasheet 3D Model
-
Description:Texas Instruments DS90C385AMT, LVDS Transceiver LVCMOS, LVTTL, 4CH, 3 → 3.6V, 56Pin, TSSOP
-
Stock Locations:
-
Availability:258 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.43
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DS90C385AMT is a Transmitter converts 28-bits of LVCMOS/LVTTL data into four LVDS (low voltage differential signalling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over the fifth LVDS link. Every cycle of the transmit clock 28-bits of input data are sampled and transmitted. At a transmit clock frequency of 87.5MHz, 24-bits of RGB data and 3-bits of LCD timing and control data (FPLINE, FPFRAME, DRDY) are transmitted at a rate of 612.5Mbps per LVDS data channel. Using a 87.5MHz clock, the data throughput is 306.25Mbps. This transmitter can be programmed for Rising edge strobe or Falling edge strobe through a dedicated pin. A Rising edge or Falling edge strobe transmitter will interoperate with a Falling edge strobe FPDLink Receiver without any translation logic. This chipset is an ideal means to solve EMI and cable size problems associated with wide, high-speed TTL interfaces with added Spread Spectrum Clocking support.
- Pin-to-Pin-compatible to DS90C383, DS90C383A and DS90C385
- No special start-up sequence required between clock/data and /PD pins
- Supports spread spectrum clocking up to 100kHz frequency modulation
- Narrow bus reduces cable size
- Up to 2.45Gbps throughput
- Up to 306.25Mbps bandwidth
- 345mV Typical Swing LVDS devices for low EMI
- PLL requires no external components
- Compliant to TIA/EIA-644 LVDS standard
- Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
DS90C385AMT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 56 Pin |
| Case/Package | TSSOP-56 |
| Supply Voltage (DC) | 3.00V (min) |
| Number of Channels | 5 Channel |
| Number of Positions | 56 Position |
| Power Dissipation | 1.63 W |
| Data Rate | 2.45 Gbps |
| Output Voltage (Max) | 450 mV |
| Input Current (Min) | 10 μA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 1630 mW |
| Supply Voltage | 3.3.6 VDC |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 14 mm |
| Size-Width | 6.1 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -10℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Rail |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
