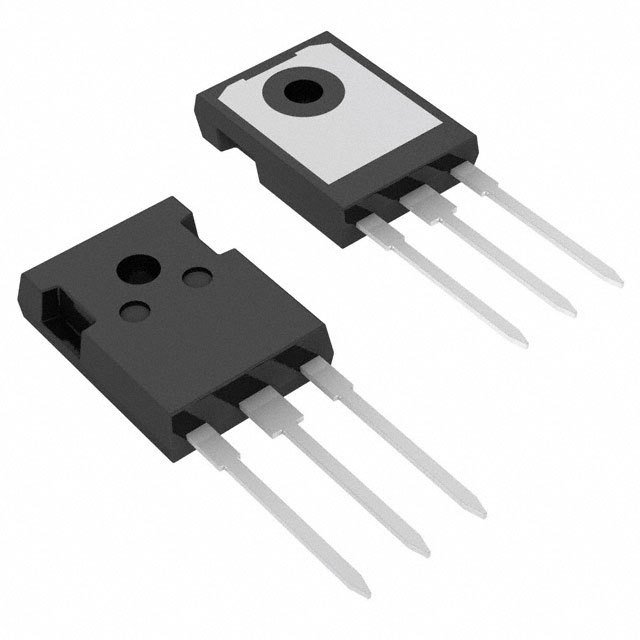

DSA70C100HB - IXYS Semiconductor
Manufacturer:
IXYS Semiconductor
ManyChip's Part#:
MC54342804
Category:
Schottky Diode
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
IXYS SEMICONDUCTOR DSA70C100HB Small Signal Schottky Diode, Dual Common Cathode, 100V, 35A, 740mV, 320A, 125℃
Stock Locations:
Availability:
293 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.24

Updated at 14/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DSA70C100HB is a silicon high performance Schottky Diode features extremely low switching loss, high reliability circuit operation and soft recovery common cathode configuration. It is used as rectifiers in switch mode power supplies (SMPS) and freewheeling diode in low voltage converter.
Very low Vf
Low Irm values
Improved thermal behaviour
Low voltage peaks for reduced protection circuits
Low noise switching
Epoxy meets UL 94V-0

Show

DSA70C100HB Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Positions	3 Position
Forward Voltage	920mV @35A
Forward Current	35 A
Max Forward Surge Current (Ifsm)	320 A
Maximum Forward Voltage (Max)	740 mV
Forward Current (Max)	70000 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	160000 mW
	Show
Size-Width	5.3 mm
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
