Description

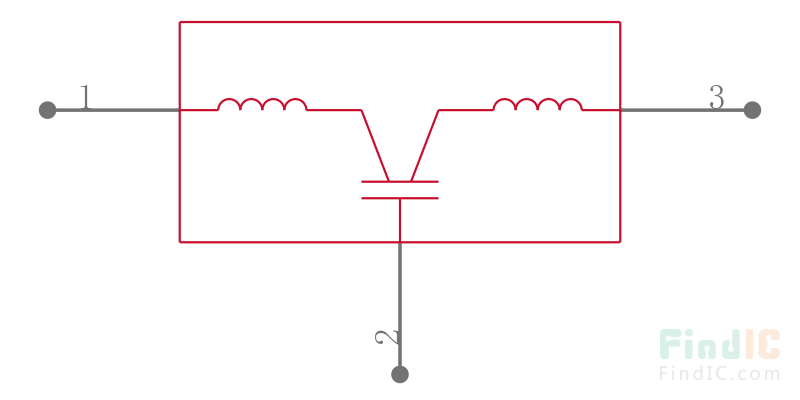

- LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 0.022µF 6A Radial - 3 Leads
DSS1NB32A223Q91A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | Radial - 3 Leads |
| Number of Channels | 1 Channel |
| Current Rating (Max) | 6 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 100 VDC |
| Voltage Rating | 100 V |
| Show | |
| Size-Height | 7.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Box (TB) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
